Components [09/2014 - 11/2017]

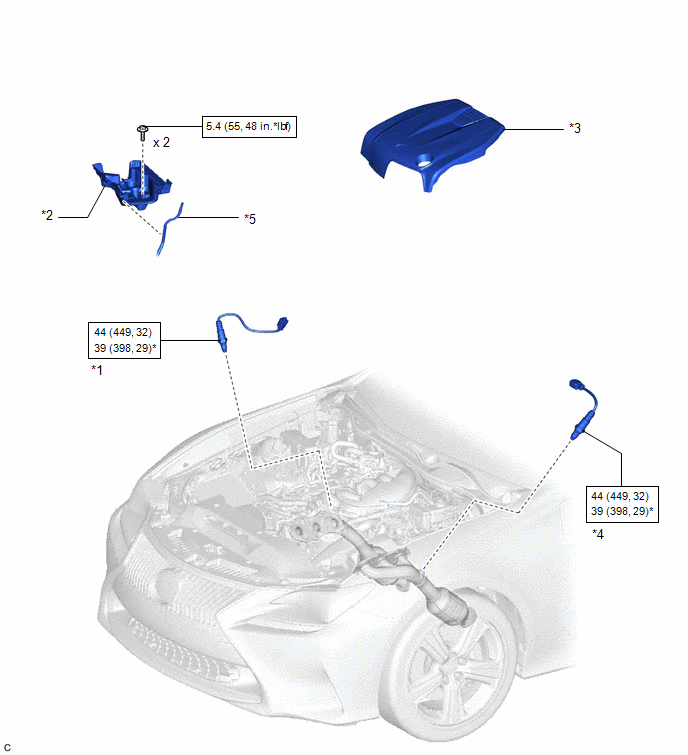

Fig 1: Air Fuel Ratio Sensor Replacement Components With Torque Specifications [09/2014 - 11/2017]
GTY514499Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 AIR FUEL RATIO SENSOR (for Bank 1) *2 BATTERY TRAY
*3 V-BANK COVER SUB-ASSEMBLY *4 AIR FUEL RATIO SENSOR (for Bank 2)
*5 FUEL PIPE - -
N.m (kgf/cm, ft.lbf): Specified torque * For use with SST
