Removal [09/2014 - 11/2017]: Procedure

REMOVE V-BANK COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 4 [09/2014 - 10/2015] , or refer to PROCEDURE - Step 4 [10/2015 - 11/2017]
REMOVE POWER STEERING ECU ASSEMBLY
Refer to REMOVAL [09/2014 - ]

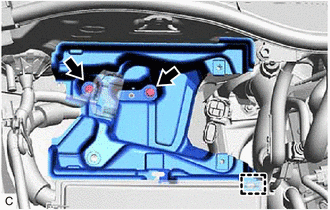

REMOVE BATTERY TRAY

Disengage the fuel pipe clamp from the battery tray.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE AIR FUEL RATIO SENSOR

for Bank 1:

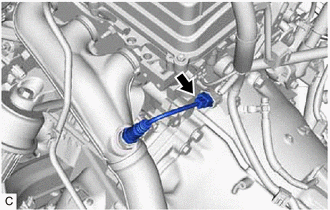

Disconnect the air fuel ratio sensor connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using SST, remove the air fuel ratio sensor from the exhaust manifold RH.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

If the air fuel ratio sensor has been struck or dropped, replace it.

for Bank 2:

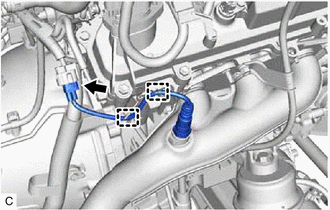

Disconnect the air fuel ratio sensor connector.

Using SST, remove the air fuel ratio sensor from the exhaust manifold LH.

NOTE:

If the air fuel ratio sensor has been struck or dropped, replace it.
