Removal [09/2014 - 11/2017]: Procedure

Refer to REMOVAL [09/2014 - ]

Refer to REMOVAL [09/2014 - 10/2018]

1. for Bank 1:
   1. Turn back the floor carpet.
   2. Disconnect the heated oxygen sensor connector.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

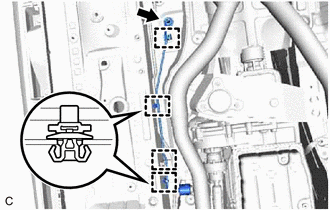

   3. Disengage the clamp.
2. for Bank 2:
   1. Turn back the floor carpet.

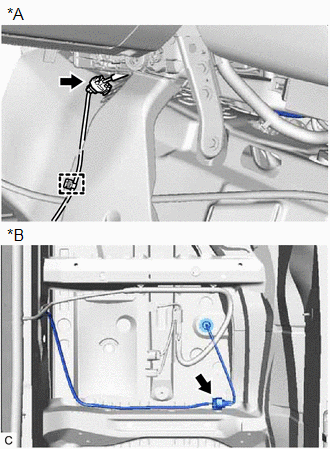

   2. Disconnect the heated oxygen sensor connector.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      *A	for 2WD
      *B	for AWD

   3. for 2WD:

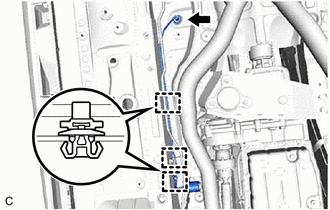

      1. Disengage the clamp.

1. for Bank 1:

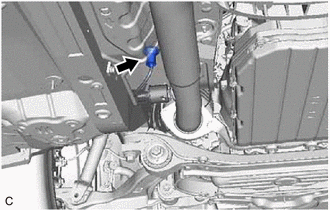

   1. Disconnect the heated oxygen sensor grommet from the vehicle body.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

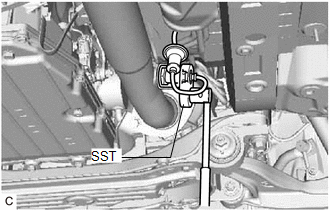

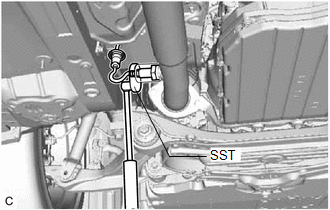

   2. Using SST, remove the heated oxygen sensor from the front exhaust pipe assembly.
      • SST: 09224-00010

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NOTE:

      If the heated oxygen sensor has been struck or dropped, replace it.

2. for Bank 2 (for 2WD):

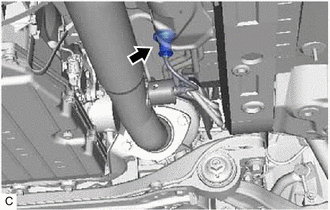

   1. Disconnect the heated oxygen sensor grommet from the vehicle body.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

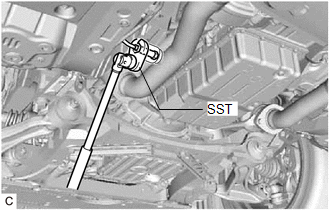

   2. Using SST, remove the heated oxygen sensor from the front exhaust pipe assembly.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      • SST: 09224-00010
      NOTE:

      If the heated oxygen sensor has been struck or dropped, replace it.

3. for Bank 2 (for AWD with Front Floor Cover LH):

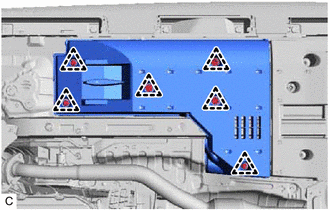

   1. Disengage the 6 clips and remove the front floor cover LH.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   2. Disconnect the heated oxygen sensor grommet from the vehicle body.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   3. Disengage the 3 clamps.
   4. Using SST, remove the heated oxygen sensor from the front exhaust pipe assembly.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      • SST: 09224-00010
      NOTE:

      If the heated oxygen sensor has been struck or dropped, replace it.

4. for Bank 2 (for AWD without Front Floor Cover LH):
   1. Disconnect the heated oxygen sensor grommet from the vehicle body.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   2. Disengage the 4 clamps.
   3. Using SST, remove the heated oxygen sensor from the front exhaust pipe assembly.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      • SST: 09224-00010
      NOTE:

      If the heated oxygen sensor has been struck or dropped, replace it.
