Components [10/2015 - 11/2017]

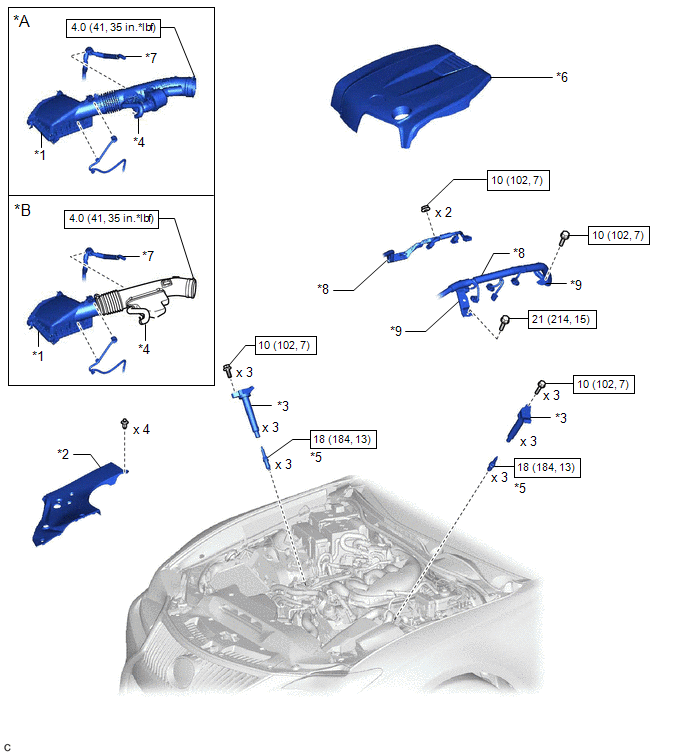

Fig 1: Ignition Coil And Spark Plug Replacement Components With Torque Specifications [10/2015 - 11/2017]
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/ Intake Air Sound Creator | *B | w/o Intake Air Sound Creator |
| *1 | AIR CLEANER CAP WITH AIR CLEANER HOSE | *2 | ENGINE ROOM SIDE COVER |
| *3 | IGNITION COIL ASSEMBLY | *4 | NO. 2 VENTILATION HOSE |
| *5 | SPARK PLUG | *6 | V-BANK COVER SUB-ASSEMBLY |
| *7 | NO. 2 FUEL VAPOR FEED HOSE | *8 | WIRE HARNESS |
| *9 | WIRE HARNESS CLAMP BRACKET | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
