Adjustment [09/2014 - 11/2017]: Procedure

INSPECT TIRES
Refer to PROCEDURE - Step 1

MEASURE VEHICLE HEIGHT

NOTE:

Before inspecting the wheel alignment, adjust the vehicle height to the specified value.
Be sure to perform measurement on a level surface.
If it is necessary to go under the vehicle for measurement, confirm that the parking brake is applied and the vehicle is secured with chocks.
Inspect while the vehicle is unloaded.
The standard value shown here is a value that is used for performing a wheel alignment and does not indicate the height of an actual vehicle.

Bounce the vehicle up and down at the corners to stabilize the suspension.

Measure the vehicle height.

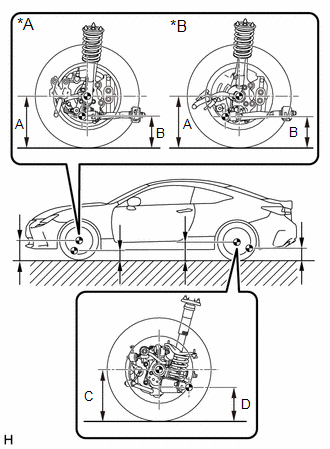

Measurement Points:

A: Ground clearance of front wheel center

B: Ground clearance of front lower suspension arm bushing set bolt center

C: Ground clearance of rear wheel center

D: Ground clearance of rear No. 2 suspension arm set bolt center

Vehicle Height (Unloaded Vehicle)

-	Front A - B	Rear C - D
for 2WD	119 mm (4.69 in.)	115 mm (4.53 in.)
for AWD	128 mm (5.04 in.)	116 mm (4.57 in.)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for 2WD
*B	for AWD

INSPECT CAMBER, CASTER AND STEERING AXIS INCLINATION

NOTE:

Inspect while the vehicle is unloaded.

Install a camber-caster-kingpin gauge and place the front wheels on the center of a turning radius gauge.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Turning Radius Gauge
*b	Camber-caster-kingpin Gauge

Inspect the camber, caster and steering axis inclination.

Camber (Unloaded Vehicle)

-	Camber Inclination	Right-left Difference
for 2WD	-0°20' +/- 0°45' (-0.33° +/- 0.75°)	0°45' (0.75°) or less
for AWD	-0°26' +/- 0°45' (-0.43° +/- 0.75°)	0°45' (0.75°) or less

Caster (Unloaded Vehicle)

-	Caster Inclination	Right-left Difference
for 2WD	8°24' +/- 0°45' (8.40° +/- 0.75°)	0°45' (0.75°) or less
for AWD	5°10' +/- 0°45' (5.17° +/- 0.75°)	0°45' (0.75°) or less

Steering Axis Inclination (Unloaded Vehicle)

-	Steering Axis Inclination Reference
for 2WD	10°34' (10.57°)
for AWD	11°04' (11.07°)

ADJUST CAMBER (for AWD)

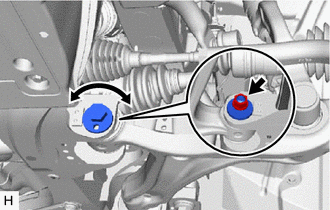

Loosen the nut of the front lower suspension arm assembly (on the front frame assembly side).

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Rotate the front No. 1 suspension camber adjust cam assembly to adjust the camber.

Camber (Unloaded Vehicle)

Camber Inclination	Right-left Difference
-0°26' +/- 0°45' (-0.43° +/- 0.75°)	0°45' (0.75°) or less

NOTE:

Inspect while the vehicle is unloaded.
Be sure to inspect toe-in after the camber has been adjusted.

HINT:

If the camber adjust cam is turned 1 notch to the left when viewing from the front of the vehicle (the bolt moves approximately 1 mm (0.0394 in.) to the outside), the camber will change by approximately -0°08' (0.13°).
Perform adjustments so that the value is as close as possible to the median of the specified range.

Tighten the nut of the front lower suspension arm assembly (on the front frame assembly side).
Torque: 119 N.m (1213 kgf/cm, 88 ft.lbf)

ADJUST CASTER (for 2WD)

According to the caster measurement, select a lower No. 2 arm bracket sub-assembly.

LOWER NO. 2 ARM BRACKET SUB-ASSEMBLY

Part No.	Installation Position	Offset Angle
48075-24070	RH	0 (Standard)
48075-24100	RH	+20' (+0.33°)
48075-24110	RH	-20' (-0.33°)
48076-24040	LH	0 (Standard)
48076-24070	LH	+20' (+0.33°)
48076-24080	LH	-20' (-0.33°)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

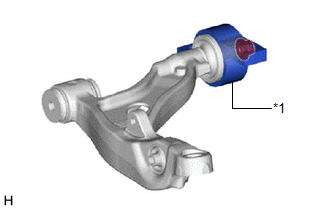

*1	Lower No. 2 Arm Bracket Sub-assembly

HINT:

Perform adjustments so that the value is as close as possible to the median of the specified range.
Refer to the instructions for Removal and Installation of the front lower suspension arm assembly.
Refer to REMOVAL [09/2014 - 10/2015] , or refer to REMOVAL [10/2015 - 11/2017]

INSPECT TOE-IN

NOTE:

Inspect while the vehicle is unloaded.

Bounce the vehicle up and down at the corners to stabilize the suspension.
Release the parking brake and move the shift lever to N.
Push the vehicle straight ahead approximately 5 m (16.4 ft.). (Step C)

Put tread center marks on the rearmost points of the front wheels and measure the distance between the marks (dimension B).

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Tread Center Mark
*b	Dimension B
	Front of the Vehicle

Slowly push the vehicle straight ahead to cause the front wheels to rotate 180°. Use the front tire valve as a reference point.
HINT:

Do not allow the wheels to rotate more than 180°. If the wheels rotate more than 180°, perform the procedure from step C again.

Measure the distance between the tread center marks on the front of the wheels (dimension A).

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Dimension A
	Front of the Vehicle

Toe-in (Unloaded Vehicle)

-	Specified Condition
for 2WD	C + D: 0°05' +/- 0°11' (0.09° +/- 0.18°)
for 2WD	B - A: 1.0 +/- 2.0 mm (0.0394 +/- 0.0787 in.)
for AWD	C + D: 0°00' +/- 0°11' (0° +/- 0.18°)
for AWD	B - A: 0 +/- 2.0 mm (0 +/- 0.0787 in.)

HINT:

Measure "B - A" only when "C + D" cannot be measured.

If the toe-in is not within the specified range, adjust it at the steering rack ends.

ADJUST TOE-IN

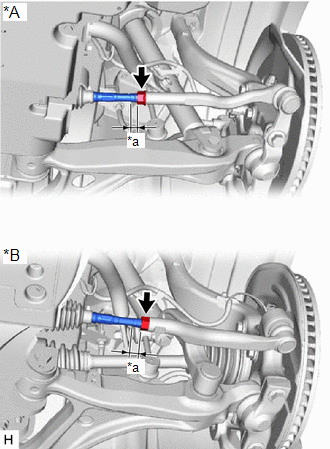

Make sure that the thread length of the right and left steering rack ends are approximately the same.

Standard Difference

1.5 mm (0.0591 in.) or less

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for 2WD
*B	for AWD
*a	Thread Length

Remove the steering rack boot clips.
Loosen the tie rod assembly lock nuts.
Adjust the steering rack ends if the difference in thread length between the right and left steering rack ends is not within the specified range.
1. If the toe-in measurement is greater than the specified range (too much toe-out), shorten the longer steering rack end so that the length difference is within the specified range.
2. If the toe-in measurement is less than the specified range (too much toe-in), extend the shorter steering rack end so that the length difference is within the specified range.
3. Measure the toe-in.

Turn the right and left steering rack ends by an equal amount to adjust the toe-in.

Toe-in (Unloaded Vehicle)

-	Specified Condition
for 2WD	C + D: 0°05' +/- 0°11' (0.09° +/- 0.18°)
for 2WD	B - A: 1.0 +/- 2.0 mm (0.0394 +/- 0.0787 in.)
for AWD	C + D: 0°00' +/- 0°11' (0° +/- 0.18°)
for AWD	B - A: 0 +/- 2.0 mm (0 +/- 0.0787 in.)

HINT:

Perform adjustments so that the value is as close as possible to the median of the specified range.

Make sure that the thread length of the right and left steering rack ends are the same.
Tighten the tie rod assembly lock nuts.
Torque: 55.9 N.m (570 kgf/cm, 41 ft.lbf)
Place the steering rack boots on the seats and install the steering rack boot clips.
HINT:
- Make sure that the steering rack boots are not twisted.
- Make sure that the steering rack boot clips are facing towards the front of the vehicle.
w/ VGRS:
1. Perform variable gear ratio steering system calibration.
  Refer to CALIBRATION [09/2014 - 09/2020]

INSPECT WHEEL ANGLE

Put tread center marks on the rearmost points of a turning radius gauge.

*a	Inside
*b	Outside
	Front of the Vehicle

Turn the steering wheel fully to the left and right and measure the turning angle.

NOTE:

Inspect while the vehicle is unloaded.

Wheel Turning Angle (Unloaded Vehicle)

-	Inside Wheel	Outside Wheel
for 2WD	41°29' +/- 2°00' (41.48° +/- 2°)	35°51' (35.85°)
for AWD	39°12' +/- 2°00' (39.20° +/- 2°)	35°39' (35.65°)

If the right and left inside wheel angles differ from the specified value, check and adjust the right and left steering rack end lengths.

INSPECT FRONT SUSPENSION (for 2WD)

Inspect the front suspension crossmember sub-assembly.

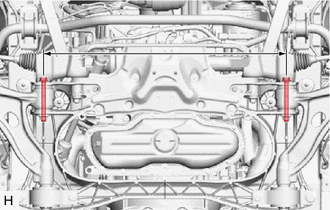

Measure the dimension between the center of the 2 installation bolts of the front lower suspension arm assembly.

Standard

692.5 to 699.5 mm (2.28 to 2.29 ft.)

If the result is not as specified, replace the front suspension crossmember sub-assembly.

HINT:

Refer to the instructions for removal and installation of the front suspension crossmember sub-assembly.

Refer to REMOVAL [09/2014 - 10/2015] , or refer to REMOVAL [10/2015 - 11/2017]

Inspect the front lower suspension arm assembly.

Remove the front lower suspension arm assembly.
HINT:

Refer to the instructions for removal of the front lower suspension arm assembly.

Refer to REMOVAL [09/2014 - 10/2015] , or refer to REMOVAL [10/2015 - 11/2017]

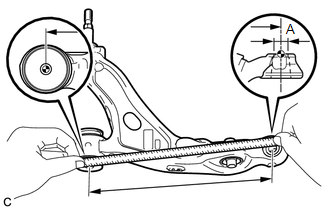

Measure the dimension between the center of the front lower suspension arm assembly bush and the center of position A.

Standard

384.5 to 385.9 mm (1.262 to 1.265 ft.)

If the dimension of the front lower suspension arm assembly changes 2 mm (0.0787 in.), the camber will change approximately 0°15' (0.25°).

Inspect the front upper suspension arm assembly.

Remove the front upper suspension arm assembly.
HINT:

Refer to the instructions for removal of the front upper suspension arm assembly.

Refer to REMOVAL [09/2014 - ]

Measure the dimension between the center of the front upper suspension arm assembly bush and the center of the ball joint stud.

Standard

233.4 to 234.0 mm (9.19 to 9.21 in.)

If the dimension of the front upper suspension arm assembly changes 2 mm (0.0787 in.), the camber will change approximately 0°15' (0.25°).

ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
PERFORM YAW RATE AND ACCELERATION SENSOR CALIBRATION
Refer to CALIBRATION [09/2014 - 11/2017]
ADJUST LANE DEPARTURE WARNING CAMERA (w/ Lane Departure Alert System)
Refer to ADJUSTMENT [09/2014 - 11/2017]
