Removal [09/2014 - 11/2017]: Procedure

  1. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 9

  2. REMOVE PRE-COLLISION SYSTEM CANCEL SWITCH ASSEMBLY

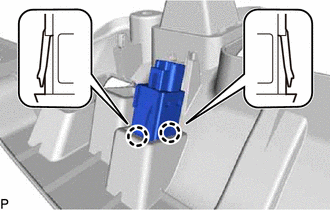

    1. Disengage the 2 claws to remove the pre-collision system cancel switch assembly.
      GTY512963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
