Removal [10/2015 - ]: Procedure

  1. REMOVE FRONT WHEEL

    Refer to PROCEDURE - Step 1

  2. SEPARATE FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY

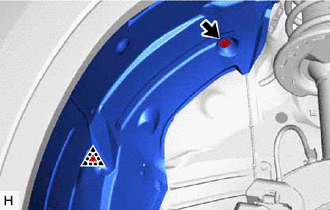

    GTY620578Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the screw and clip to separate the front fender splash shield sub-assembly.
  3. REMOVE FRONT SPEED SENSOR (w/o AVS)
    1. Turn back the front fender splash shield sub-assembly.
    2. Disconnect the front speed sensor connector.

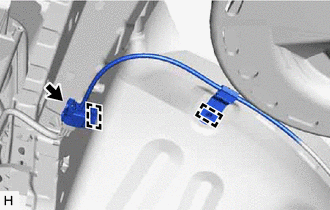

      GTY620579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 2 sensor clamps.
    4. Remove the bolt and sensor clamp.

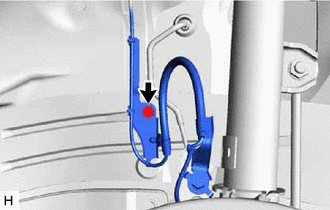

      GTY674272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the bolt and separate the front flexible hose and sensor clamp.

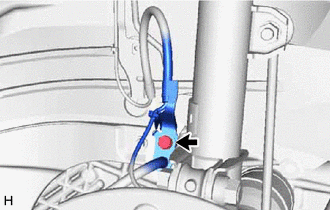

      GTY620581Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Disengage the 2 claws to separate the sensor clamp.

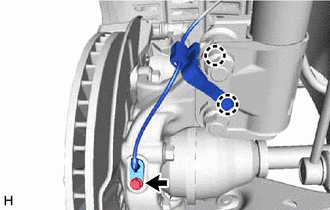

      GTY620582Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Remove the bolt and front speed sensor from the steering knuckle.
      NOTE:
      • Keep the tip of the front speed sensor and installation hole free of foreign matter.
      • Do not rotate or apply excessive force to the front speed sensor when removing it from the steering knuckle. Rotating or applying excessive force may result in damage to the front speed sensor.
  4. REMOVE FRONT SPEED SENSOR (w/ AVS)
    1. Disconnect the front speed sensor connector.

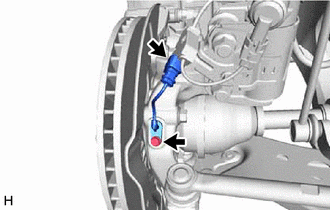

      GTY620566Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and front speed sensor from the steering knuckle.
      NOTE:
      • Keep the tip of the front speed sensor and installation hole free of foreign matter.
      • Do not rotate or apply excessive force to the front speed sensor when removing it from the steering knuckle. Rotating or applying excessive force may result in damage to the front speed sensor.
  5. REMOVE FRONT SKID CONTROL SENSOR WIRE (w/ AVS)
    1. Turn back the front fender splash shield sub-assembly.
    2. Disconnect the front skid control sensor wire connector.
      GTY620579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 2 sensor clamps.
    4. Remove the bolt and sensor clamp.
      GTY674272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the bolt and separate the front flexible hose and sensor clamp.
      GTY620581Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Disconnect the connector from the front shock absorber assembly.

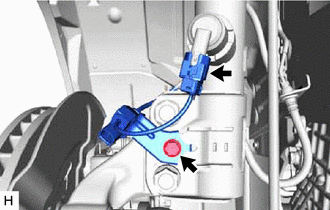

      GTY620567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Remove the bolt and front skid control sensor wire from the front shock absorber assembly.
