Components [03/2018 - ]

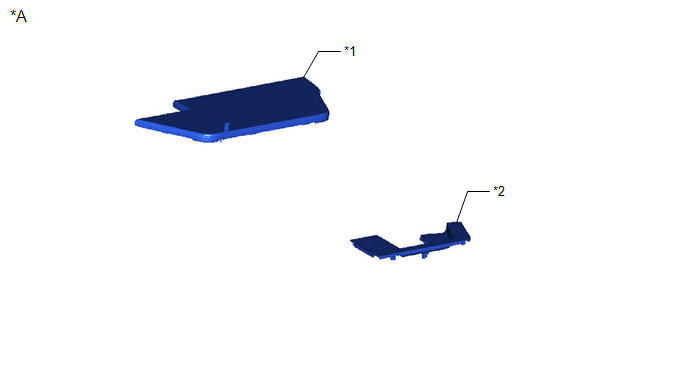

Fig 1: Skid Control ECU Replacement Components [03/2018 - ] (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/o Rear No. 2 Seat	-	-
*1	DECK BOARD ASSEMBLY	*2	REAR DECK FLOOR BOX

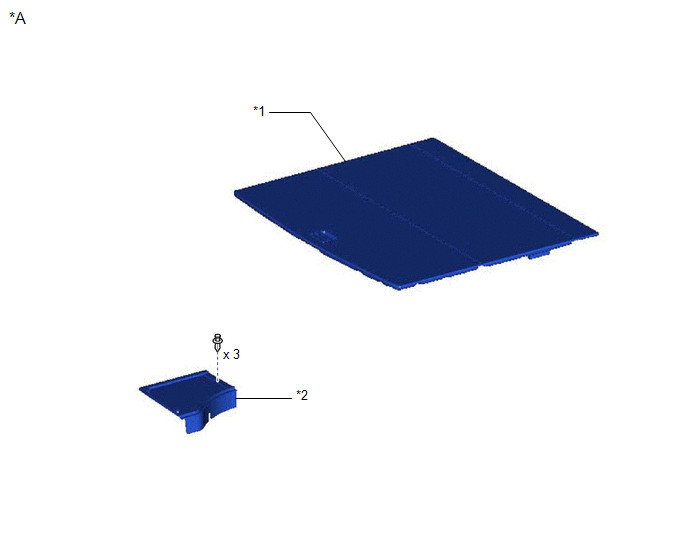

Fig 2: Skid Control ECU Replacement Components [03/2018 - ] (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/ Rear No. 2 Seat	-	-
*1	REAR NO. 4 FLOOR BOARD	*2	BATTERY SERVICE HOLE COVER

Fig 3: Skid Control ECU Replacement Components [03/2018 - ] (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	COWL SIDE TRIM BOARD RH	*2	FRONT DOOR SCUFF PLATE RH
*3	GLOVE COMPARTMENT DOOR ASSEMBLY	*4	INSTRUMENT PANEL GARNISH RH
*5	LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL	*6	NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Fig 4: Skid Control ECU Replacement Components With Torque Specifications [03/2018 - ] (4 Of 4)

Callout	Description	Callout	Description
*1	SKID CONTROL ECU ASSEMBLY	*2	CONNECTOR HOLDER
*3	CONNECTOR	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	-	-
