Inspection [07/2015 - ]: Procedure
- INSPECT SKID CONTROL BUZZER ASSEMBLY
- Make sure that there is no looseness at the locking part and the connecting part of the connector.TEXT IN ILLUSTRATION
*a Component without harness connected
(Skid Control Buzzer Assembly) - Disconnect the skid control buzzer assembly connector.
- Check both the connector case and the terminal for deformation and corrosion.
OK
No deformation or corrosion.

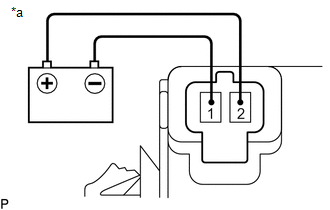

- Connect a negative (-) lead from the auxiliary battery to terminal 1, and a positive (+) lead to terminal 2 of the skid control buzzer assembly, and then check that the buzzer sounds.
OK
The skid control buzzer assembly sounds.
If the result is not as specified, replace the skid control buzzer assembly.
- Make sure that there is no looseness at the locking part and the connecting part of the connector.
