Removal [09/2014 - 10/2015]: Procedure

  1. DISABLE AUTO TILT AWAY FUNCTION

    Refer to PROCEDURE - Step 2

  2. REMOVE STEERING COLUMN COVER

    Refer to PROCEDURE - Step 3

  3. REMOVE DRIVER MONITOR BRACKET

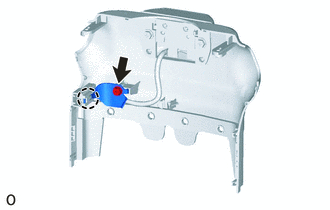

    1. Remove the screw.
      GTY396771Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the claw and remove the driver monitor bracket.
  4. REMOVE DRIVER MONITOR CAMERA

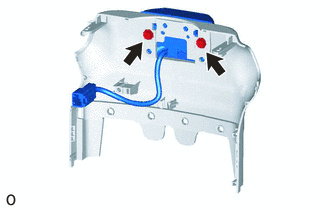

    1. Remove the 2 screws.
      GTY396772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

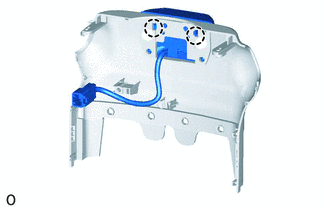

    2. Detach the 2 claws and remove the driver monitor camera.
      GTY397131Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
