Inspection [08/2015 - ]: Procedure

INSPECT REAR HEIGHT CONTROL SENSOR

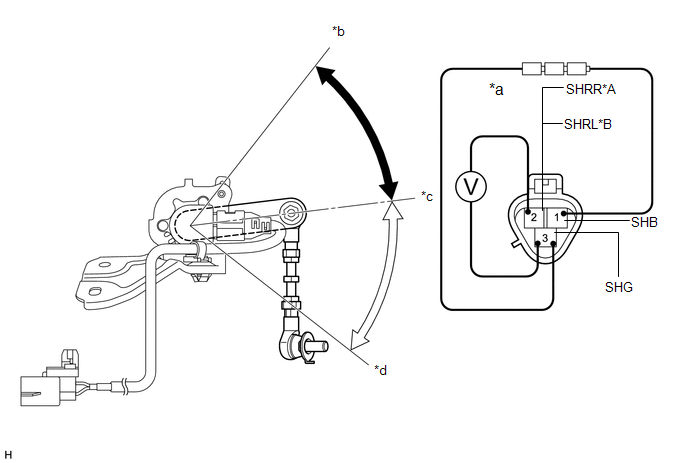

Check the rear height control sensor.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*A	for RH	*B	for LH
*a	Component without harness connected (Rear Height Control Sensor)	*b	Vehicle Height: Low
*c	Normal	*d	Vehicle Height: High
	45°		45°

Connect 3 dry cell batteries of 1.5 V in series.

Connect the positive (+) end of the batteries to terminal 1 (SHB) of the height control sensor and the negative (-) end of the batteries to terminal 3 (SHG). While slowly moving the sensor link up and down, measure the voltage according to the value(s) in the table below.

Standard Voltage

FOR RH

Tester Connection	Sensor Condition	Specified Condition
3 (SHG) - 2 (SHRR)	High (45°)	3.60 to 4.52 V
	Normal (0°)	2.06 to 2.45 V
	Low (-45°)	0.40 to 0.51 V

FOR LH

Tester Connection	Sensor Condition	Specified Condition
3 (SHG) - 2 (SHRL)	High (45°)	3.60 to 4.52 V
	Normal (0°)	2.06 to 2.45 V
	Low (-45°)	0.40 to 0.51 V

NOTE:

Do not apply higher than 6 V.

If the result is not as specified, replace the height control sensor.
