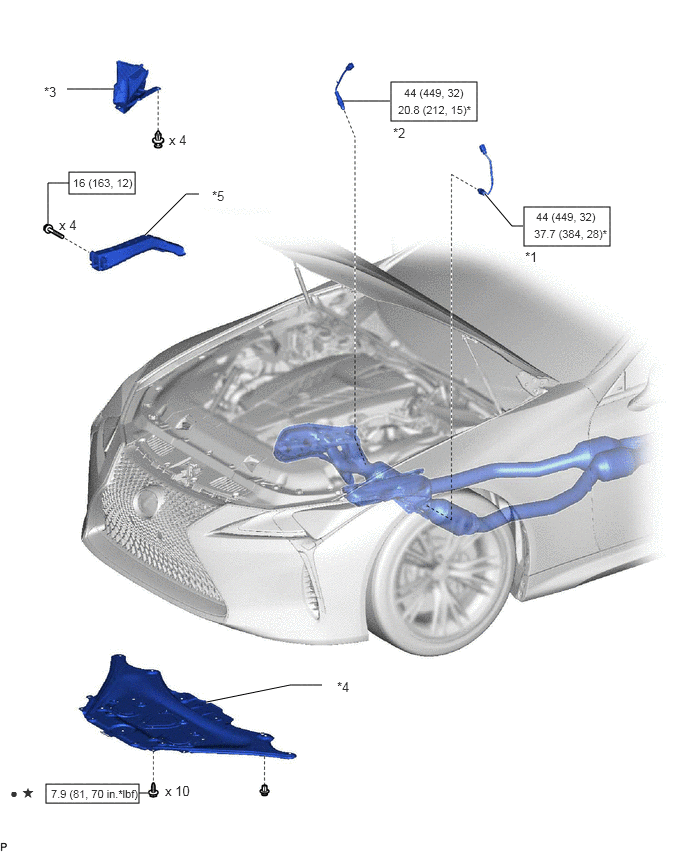

Components [03/2017 - 09/2023]
| *1 | AIR FUEL RATIO SENSOR (for Bank 1) | *2 | AIR FUEL RATIO SENSOR (for Bank 2) |
| *3 | ENGINE SIDE COVER RH | *4 | NO. 2 ENGINE UNDER COVER ASSEMBLY |
| *5 | REAR LOWER ARM MOUNTING REINFORCEMENT SUB-ASSEMBLY RH | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | * | For use with SST | |
| • | Non-reusable part | * | Precoated part |
