Components [03/2017 - ]

Fig 1: Camshaft Timing Control Motor Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	LOWER RADIATOR AIR DEFLECTOR	*2	RADIATOR SUPPORT TO CROSS MEMBER BRACE SUB-ASSEMBLY LH
*3	RADIATOR SUPPORT TO CROSS MEMBER BRACE SUB-ASSEMBLY RH	*4	RADIATOR SUPPORT TO FRAME SEAL LH
*5	RADIATOR SUPPORT TO FRAME SEAL RH	*6	V-BANK COVER SUB-ASSEMBLY
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

Fig 2: Camshaft Timing Control Motor Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	AIR CLEANER HOSE ASSEMBLY	*2	AIR CLEANER WITH ELEMENT ASSEMBLY LH
*3	AIR CLEANER WITH ELEMENT ASSEMBLY RH	*4	INTAKE AIR CONNECTOR PIPE
*5	INTAKE AIR SOUND CREATOR	*6	NO. 2 INTAKE AIR CONNECTOR PIPE
*7	NO. 2 PCV HOSE	*8	NO. 3 PCV HOSE
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

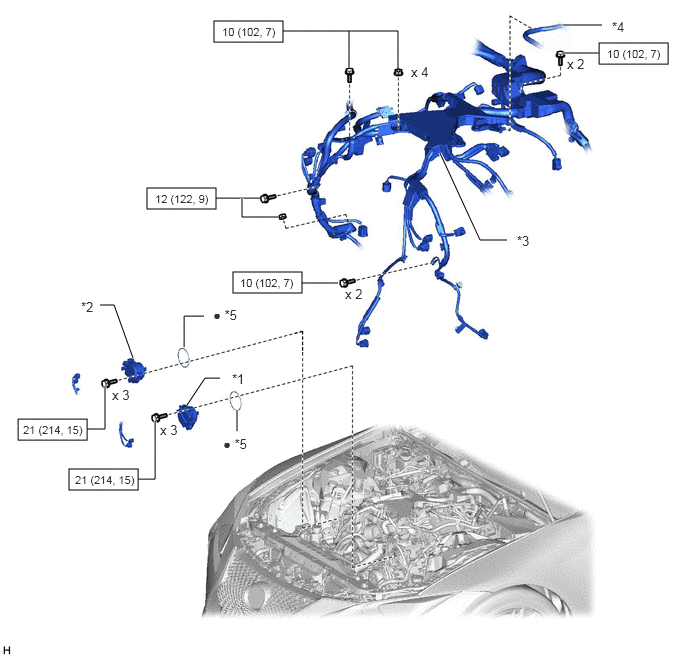

Fig 3: Camshaft Timing Control Motor Replacement Components With Torque Specifications (3 Of 3)

*1	CAMSHAFT TIMING CONTROL MOTOR WITH EDU ASSEMBLY LH	*2	CAMSHAFT TIMING CONTROL MOTOR WITH EDU ASSEMBLY RH
*3	ENGINE WIRE	*4	FUEL TUBE SUB-ASSEMBLY
*5	O-RING	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	•	Non-reusable part
