Installation [01/2017 - ]: Procedure

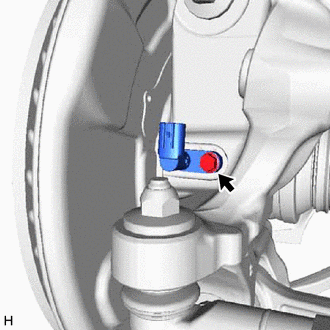

INSTALL REAR SPEED SENSOR LH

Install the rear speed sensor LH with the bolt.

Torque: 8.5 N.m (87 kgf/cm, 75 in.lbf)

NOTE:

The rear speed sensor is easily damaged. When installing the rear speed sensor to the rear axle hub LH, do not use excessive force to rotate and install it.
Prevent foreign matter from attaching to the sensor tip.
Do not drop the sensor. If the sensor has been dropped, replace the sensor with a new one.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTALL SKID CONTROL SENSOR WIRE

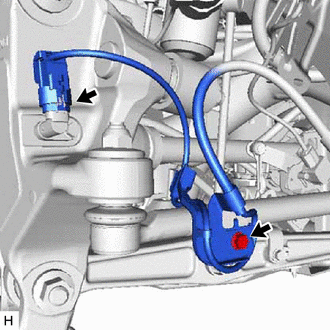

for LH Side:

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install the sensor clamp with the bolt.
Torque: 8.5 N.m (87 kgf/cm, 75 in.lbf)

NOTE:
Do not twist the skid control sensor wire.
Connect the speed sensor connector to the rear speed sensor LH.

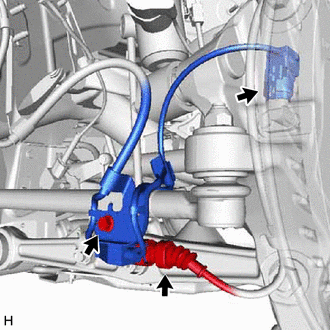

for RH Side:

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install the sensor clamp with the bolt.
Torque: 8.5 N.m (87 kgf/cm, 75 in.lbf)

NOTE:
Do not twist the skid control sensor wire.
Connect the speed sensor connector to the rear speed sensor RH.

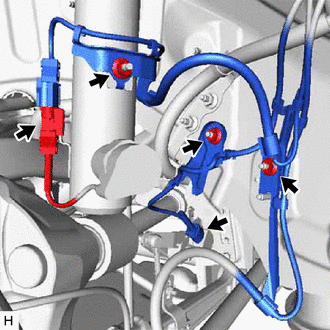

Connect the pad wear indicator connector.

Install the 3 sensor clamps with the 3 nuts.

Torque: 6.0 N.m (61 kgf/cm, 53 in.lbf)

NOTE:

Do not twist the skid control sensor wire.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

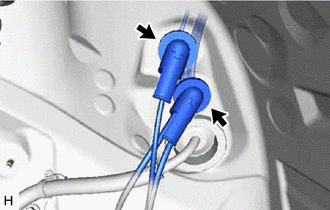

Insert the 2 skid control sensor wire connectors into the cabin from the hole in the rear wheel house.

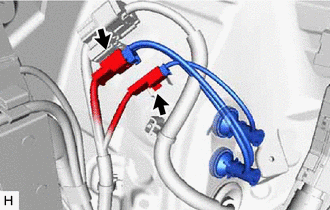

for LH Side:

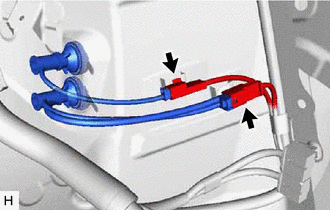

for RH Side:

INSTALL INNER LUGGAGE COMPARTMENT TRIM COVER LH
Refer to REASSEMBLY [01/2017 - 01/2021] , or refer to REASSEMBLY [01/2021 - 05/2023] , or refer to REASSEMBLY [05/2023 - ]
INSTALL INNER LUGGAGE COMPARTMENT TRIM COVER RH
Refer to REASSEMBLY [01/2017 - 01/2021] , or refer to REASSEMBLY [01/2021 - 05/2023] , or refer to REASSEMBLY [05/2023 - ]
INSTALL REAR WHEEL
Refer to INSTALLATION [01/2017 - 05/2023] , or refer to INSTALLATION [05/2023 - ]
CHECK FOR SPEED SENSOR SIGNAL
Refer to TEST MODE PROCEDURE [01/2017 - 05/2023] , or refer to TEST MODE PROCEDURE [05/2023 - ]
