Installation [10/2023 - ]: Procedure

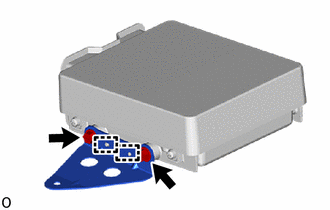

1. Attach the guide and install the No. 2 integration control supply bracket with the 2 screws.

   Torque: 4.5 N.m (46 kgf/cm, 40 in.lbf)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

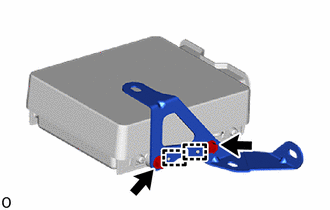

1. Attach the guide and install the No. 1 integration control supply bracket with the 2 screws.

   Torque: 4.5 N.m (46 kgf/cm, 40 in.lbf)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

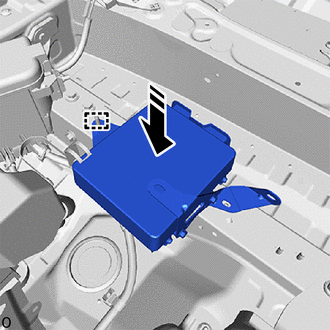

1. Attach the guide and temporarily install the integration control supply with bracket as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Install in this Direction

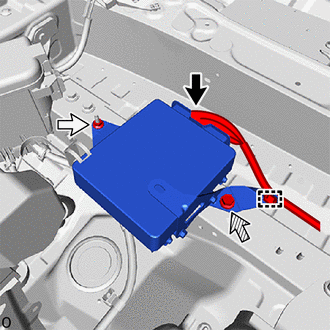

2. Tighten the bolt and nut to install the integration control supply with bracket.

   Nut

   Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

   Bolt

   Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Connector
   	Nut
   	Bolt

3. Connect the connector.

Refer to INSTALLATION [10/2023 - ]

Refer to PROCEDURE - Step 2

Refer to WORK PROCEDURE [10/2023 - ]

HINT:

When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

Refer to AUTOMATIC LEARNING CHART [10/2023 - ]

Refer to PROCEDURE - Step 11
