Components [12/2017 - ]

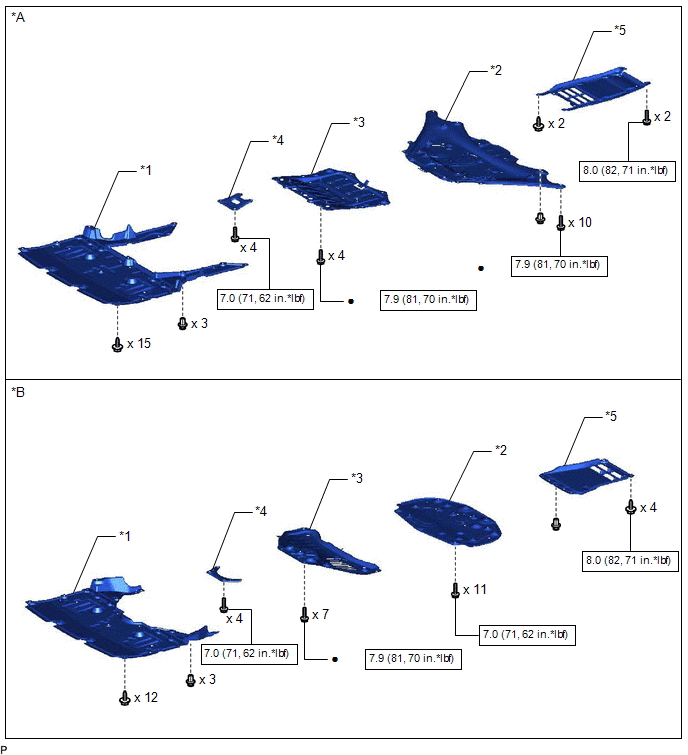

Fig 1: Oil Level Sensor Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	For 2WD	*B	For AWD
*1	NO. 1 ENGINE UNDER COVER ASSEMBLY	*2	NO. 2 ENGINE UNDER COVER ASSEMBLY
*3	STRUT BAR BRACKET SUPPORT SUB-ASSEMBLY	*4	FRONT SUSPENSION MEMBER BRACE
*5	TRANSMISSION UNDER COVER	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	•	Non-reusable part
*	Precoated part	-	-

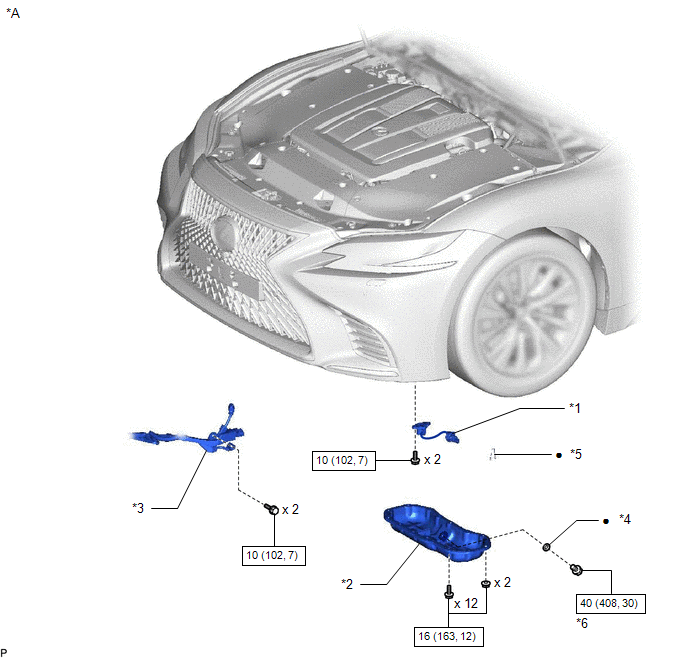

Fig 2: Oil Level Sensor Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	For 2WD	-	-
*1	ENGINE OIL LEVEL SENSOR	*2	NO. 2 OIL PAN SUB-ASSEMBLY
*3	WIRE HARNESS	*4	GASKET
*5	CLIP	*6	OIL PAN DRAIN PLUG
	Nm (kgfcm, ft.*lbf): Specified torque	•	Non-reusable part

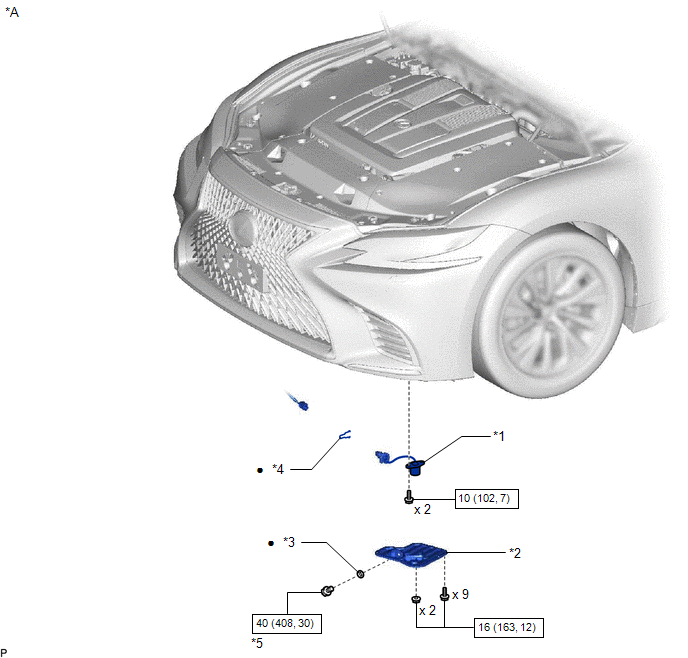

Fig 3: Oil Level Sensor Replacement Components With Torque Specifications (3 Of 3)

*A	For AWD	-	-
*1	ENGINE OIL LEVEL SENSOR	*2	NO. 2 OIL PAN SUB-ASSEMBLY
*3	GASKET	*4	CLIP
*5	OIL PAN DRAIN PLUG	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	•	Non-reusable part
