Removal [10/2017 - ]: Procedure

  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 12 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 12 [09/2018 - 09/2019] , or refer to PROCEDURE - Step 12 [09/2019 - 10/2020] , or refer to PROCEDURE - Step 12 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 12 [11/2021 - 10/2022] , or refer to PROCEDURE - Step 12 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 12 [10/2023 - ]

  2. REMOVE RADIATOR COVER PLATE

    Refer to PROCEDURE - Step 3 [10/2017 - 10/2020] , or refer to PROCEDURE - Step 3 [10/2020 - 10/2023] , or refer to PROCEDURE - Step 3 [10/2023 - ]

  3. REMOVE UPPER RADIATOR SUPPORT SEAL

    Refer to PROCEDURE - Step 2 [10/2017 - 10/2020] , or refer to PROCEDURE - Step 2 [10/2020 - 10/2023] , or refer to PROCEDURE - Step 2 [10/2023 - ]

  4. REMOVE LOWER RADIATOR AIR DEFLECTOR

    Refer to PROCEDURE - Step 4 [10/2017 - 10/2020] , or refer to PROCEDURE - Step 4 [10/2020 - 10/2023] , or refer to PROCEDURE - Step 4 [10/2023 - ]

  5. DISCONNECT NO. 2 PCV HOSE

    See step  7

  6. REMOVE AIR CLEANER WITH AIR CLEANER HOSE

    See step  9

  7. REMOVE VVT SENSOR (for Intake Side of Bank 1)

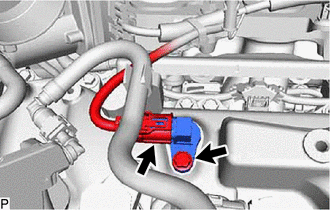

    1. Disconnect the VVT sensor connector.
      GTY786617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and VVT sensor.
      NOTE:

      If the VVT sensor has been struck or dropped, replace it.

    3. When reusing the VVT sensor:
      GTY1132297Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the O-ring from the VVT sensor.
        NOTE:
        • Make sure to only remove the O-ring with bare hands.
        • When removing the O-ring, be careful not to damage the O-ring groove of the VVT sensor.
        • If the O-ring groove is damaged, replace the VVT sensor.
  8. REMOVE VVT SENSOR (for Exhaust Side of Bank 1)
    1. Disconnect the VVT sensor connector.
      GTY835037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and VVT sensor.
      NOTE:

      If the VVT sensor has been struck or dropped, replace it.

    3. When reusing the VVT sensor:
      GTY1132298Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the O-ring from the VVT sensor.
        NOTE:
        • Make sure to only remove the O-ring with bare hands.
        • When removing the O-ring, be careful not to damage the O-ring groove of the VVT sensor.
        • If the O-ring groove is damaged, replace the VVT sensor.
  9. REMOVE VVT SENSOR (for Intake Side of Bank 2)
    1. Disconnect the VVT sensor connector.
      GTY810589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and VVT sensor.
      NOTE:

      If the VVT sensor has been struck or dropped, replace it.

    3. When reusing the VVT sensor:
      GTY1132298Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the O-ring from the VVT sensor.
        NOTE:
        • Make sure to only remove the O-ring with bare hands.
        • When removing the O-ring, be careful not to damage the O-ring groove of the VVT sensor.
        • If the O-ring groove is damaged, replace the VVT sensor.
  10. REMOVE VVT SENSOR (for Exhaust Side of Bank 2)
    1. Disconnect the VVT sensor connector.
      GTY810586Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and VVT sensor.
      NOTE:

      If the VVT sensor has been struck or dropped, replace it.

    3. When reusing the VVT sensor:
      GTY1132298Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the O-ring from the VVT sensor.
        NOTE:
        • Make sure to only remove the O-ring with bare hands.
        • When removing the O-ring, be careful not to damage the O-ring groove of the VVT sensor.
        • If the O-ring groove is damaged, replace the VVT sensor.
