Removal [10/2017 - ]: Procedure

  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 12 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 12 [09/2018 - 09/2019] , or refer to PROCEDURE - Step 12 [09/2019 - 10/2020] , or refer to PROCEDURE - Step 12 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 12 [11/2021 - 10/2022] , or refer to PROCEDURE - Step 12 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 12 [10/2023 - ]

  2. REMOVE RADIATOR COVER PLATE

    Refer to PROCEDURE - Step 3 [10/2017 - 10/2020] , or refer to PROCEDURE - Step 3 [10/2020 - 10/2023] , or refer to PROCEDURE - Step 3 [10/2023 - ]

  3. REMOVE UPPER RADIATOR SUPPORT SEAL

    Refer to PROCEDURE - Step 2 [10/2017 - 10/2020] , or refer to PROCEDURE - Step 2 [10/2020 - 10/2023] , or refer to PROCEDURE - Step 2 [10/2023 - ]

  4. REMOVE LOWER RADIATOR AIR DEFLECTOR

    Refer to PROCEDURE - Step 4 [10/2017 - 10/2020] , or refer to PROCEDURE - Step 4 [10/2020 - 10/2023] , or refer to PROCEDURE - Step 4 [10/2023 - ]

  5. REMOVE RADIATOR SUPPORT TO CROSS MEMBER BRACE SUB-ASSEMBLY RH

    Refer to PROCEDURE - Step 6 [10/2017 - 10/2020] , or refer to PROCEDURE - Step 6 [10/2020 - 10/2023] , or refer to PROCEDURE - Step 6 [10/2023 - ]

  6. DRAIN ENGINE COOLANT

    Refer to REPLACEMENT [10/2017 - 10/2023] , or refer to REPLACEMENT [10/2023 - ]

  7. DISCONNECT NO. 2 PCV HOSE

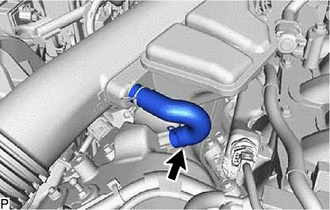

    1. Slide the clip and disconnect the No. 2 PCV hose from the cylinder head cover sub-assembly.
      GTY786623Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE NO. 1 AIR CLEANER INLET

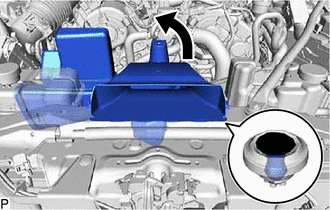

    1. Pull out the pin of the No. 1 air cleaner inlet and remove it from the air cleaner with air cleaner hose.
      NOTE:

      When removing the No. 1 air cleaner inlet, be careful not to lose the air cleaner support on the underside of the No. 1 air cleaner inlet.

      GTY823676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Pull Out
  9. REMOVE AIR CLEANER WITH AIR CLEANER HOSE

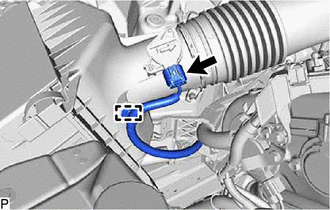

    1. Disconnect the mass air flow meter sub-assembly connector.
      GTY835174Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

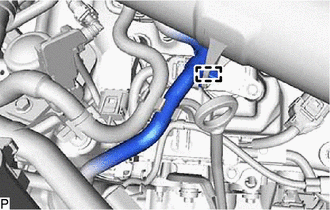

    2. Detach the wire harness clamp.
    3. Detach the clamp from the air cleaner with air cleaner hose.
      GTY786609Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

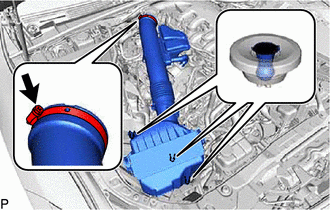

    4. Pull out the 3 air cleaner with air cleaner hose pins from the air cleaner support.
      GTY786608Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      When removing the air cleaner with air cleaner hose, be careful not to lose the air cleaner support on the underside of the air cleaner assembly.

    5. Loosen the hose clamp and remove the air cleaner with air cleaner hose from the throttle body with motor assembly.
  10. DISCONNECT NO. 3 WATER BY-PASS HOSE ASSEMBLY

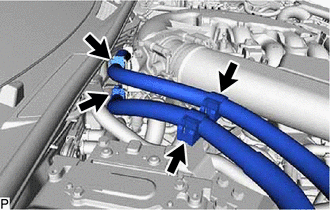

    1. Detach the 4 clamps to disconnect the motor cable and generator cable.
      GTY835057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

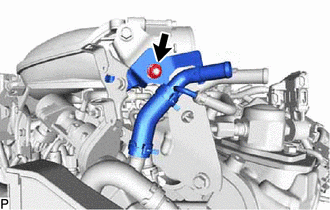

    2. Remove the nut to disconnect the No. 3 water by-pass hose assembly.
      GTY810710Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE THROTTLE BODY BRACKET

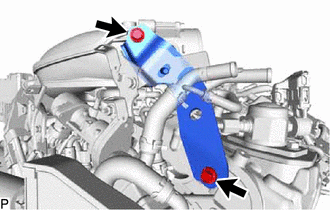

    1. Remove the 2 bolts and throttle body bracket.
      GTY810670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY

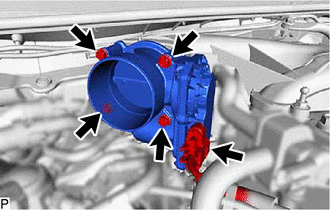

    1. Disconnect the throttle body with motor assembly connector.
      GTY811252Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 bolts and throttle body with motor assembly from the intake air surge tank assembly.
      NOTE:

      If the throttle body with motor assembly has been struck or dropped, replace it.

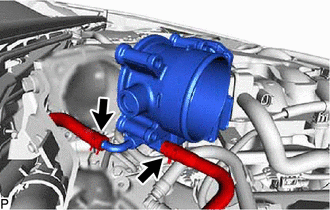

    3. Slide the 2 clips, disconnect the water by-pass hose and No. 4 water by-pass hose from the throttle body with motor assembly.
      GTY811253Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the gasket from the intake air surge tank assembly.
