Initializing Tire Pressure Monitor System

NOTE: Perform initialization AFTER the transmitter ID registration procedure (if registration is required).

NOTE: Perform initialization in the following cases:

NOTE: Initialization is NOT required if re-inflating tires to the specified tire pressure.

Set the tire pressure of all wheels to pressure specified on the tire and loading information label.
With the vehicle stopped and parking brake applied, turn the engine switch ON (IG).
Press and hold the tire pressure warning reset switch (Fig 1) for 3 seconds or more so that the tire pressure warning light blinks 3 times.
NOTE: "--" will be displayed for the inflation pressure of each tire on the multi-information display, while the tire pressure warning system determines the position on the multi-information display.
Drive the vehicle at approximately 25 mph (40 km/h) or more for approximately 10 minutes. When initialization is complete, the inflation pressure of each tire will be displayed on the multi-information display.
Turn the engine switch off.
Connect the Techstream to the DLC3.
Turn the engine switch on (IG) and turn the Techstream on.
Enter the following menus: Chassis / Tire Pressure Monitor / Data List.
Check that initialization has been completed.
Confirm that the tire pressure data of all tires is displayed on the Techstream screen.

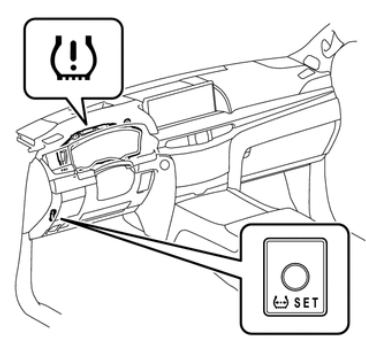

Fig 1: Identifying TPMS Warning Reset Switch (Typical)
