Installation [09/2014 - ]: Procedure

1. Install the rear speed sensor with the bolt.

   Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

   NOTE:

   Prevent foreign matter from attaching to the sensor tip.

2. Install the 2 harness clamps with the 2 bolts.

   Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

   NOTE:

   When attaching the clamps, do not twist the wire harness.

3. Install the 2 harness clamps with the 2 nuts.

   Torque: 6.0 N*m (61 kgf*cm, 53 in.*lbf)

   NOTE:

   When attaching the clamps, do not twist the wire harness.

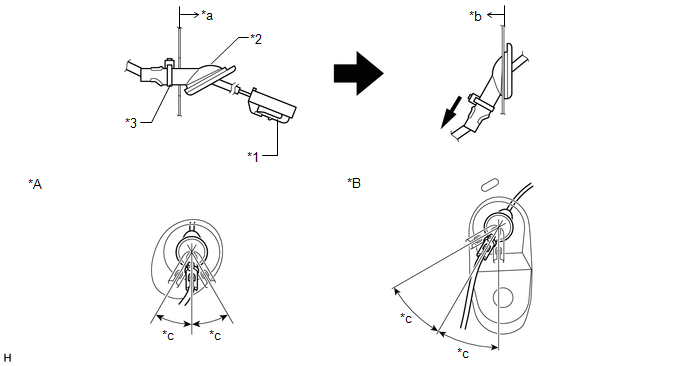

4. Insert the connector and grommet into the inside of the vehicle through the hole in the wheel house.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *A	for RH Side	*B	for LH Side
   *1	Connector	*2	Grommet
   *3	Band Clamp	-	-
   *a	Inside of Vehicle	*b	Outside of Vehicle
   *c	30°	-	-

   NOTE:

   Make sure the band clamp remains on the outside of the vehicle.

5. Hold the grommet and pull it toward the outside of the vehicle. Then fix the grommet in place so that it is not tilted.
   NOTE:

   • When pulling out the grommet, do not grip the sensor wire.
   • Fix the grommet in place within the range shown in the illustration.
6. Connect the connector on the inside of the vehicle.
   NOTE:

   When attaching the connector, do not twist the wire harness.

(Refer to PROCEDURE - Step 11 [09/2014 - 10/2015] or refer to PROCEDURE - Step 11 [10/2015 - 09/2018] or refer to PROCEDURE - Step 11 [09/2018 - ])

Refer to PROCEDURE - Step 3

Torque: 103 N*m (1050 kgf*cm, 76 ft.*lbf)

(Refer to TEST MODE PROCEDURE [09/2014 - 10/2015] or refer to TEST MODE PROCEDURE [10/2015 - ] )
