Removal [09/2014 - ]: Procedure

Refer to PROCEDURE - Step 3

(Refer to PROCEDURE - Step 18 [09/2014 - 10/2015] or refer to PROCEDURE - Step 16 [10/2015 - 09/2018] or refer to PROCEDURE - Step 15 [09/2018 - ])

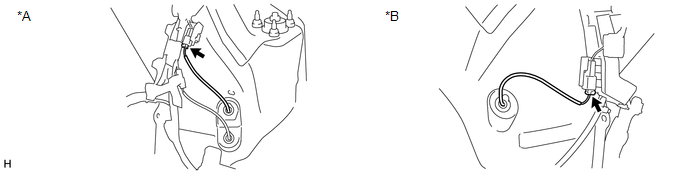

1. Disconnect the connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *A

   for LH Side

   *B

   for RH Side

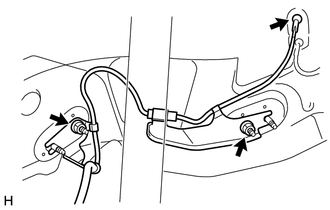

2. Remove the 2 bolts and 2 harness clamps.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

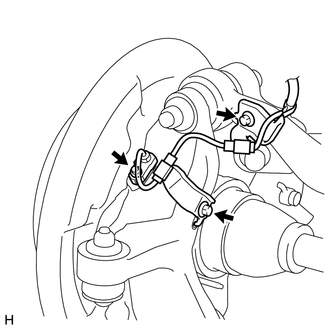

3. Remove the bolt and rear speed sensor LH from the rear axle.
   NOTE:

   Prevent foreign matter from attaching to the sensor tip.

4. Remove the 2 nuts and 2 harness clamps.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

5. Disconnect the grommet of the rear speed sensor LH from the hole of the wheel house.
6. Remove the rear speed sensor LH.
   NOTE:

   Prevent foreign matter from attaching to the sensor tip.
