Installation [10/2015 - ]: Procedure

  1. INSTALL ENGINE SWITCH

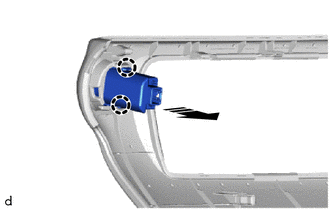

    GTY681274Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Install in this Direction
    1. Engage the 2 claws and install the engine switch to the instrument center cluster finish panel sub-assembly.
  2. INSTALL INSTRUMENT CENTER CLUSTER FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 9
