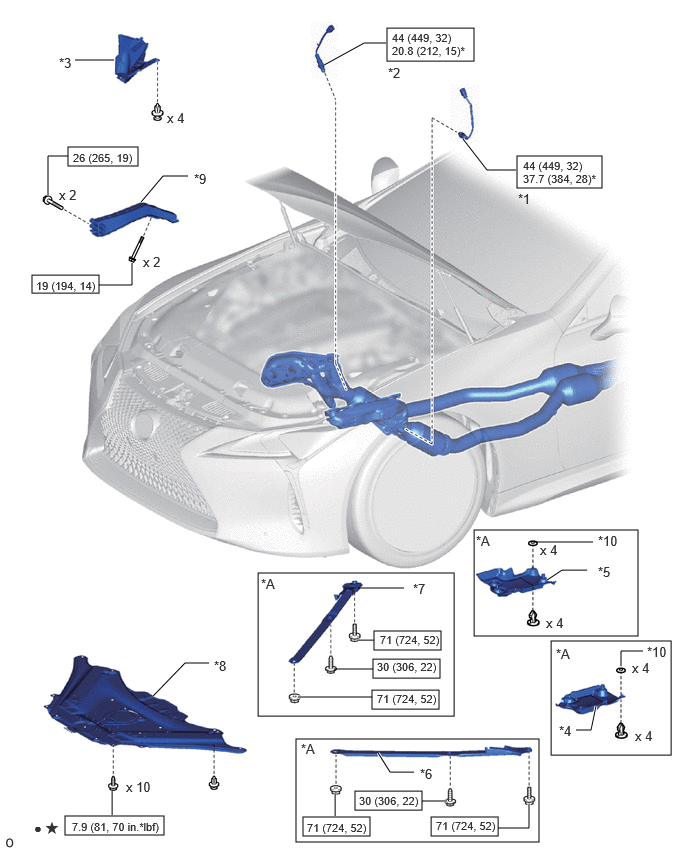

Components [09/2023 - ]
| *A | w/ Front Suspension Member Brace | - | - |
| *1 | AIR FUEL RATIO SENSOR (for Bank 1) | *2 | AIR FUEL RATIO SENSOR (for Bank 2) |
| *3 | ENGINE SIDE COVER RH | *4 | FRONT FENDER SEAL LH |
| *5 | FRONT FENDER SEAL RH | *6 | FRONT SUSPENSION MEMBER BRACE SUB-ASSEMBLY LH |
| *7 | FRONT SUSPENSION MEMBER BRACE SUB-ASSEMBLY RH | *8 | NO. 2 ENGINE UNDER COVER ASSEMBLY |
| *9 | REAR LOWER ARM MOUNTING REINFORCEMENT SUB-ASSEMBLY RH | *10 | PLATE WASHER |
| N*m (kgf*cm, ft.*lbf): Specified torque | * | For use with SST | |
| • | Non-reusable part | * | Precoated part |
