Inspection [12/2017 - ]: Procedure
- INSPECT ENGINE OIL LEVEL SENSOR
- Measure the resistance according to the value(s) in the table below.
Standard Resistance (for 2WD)

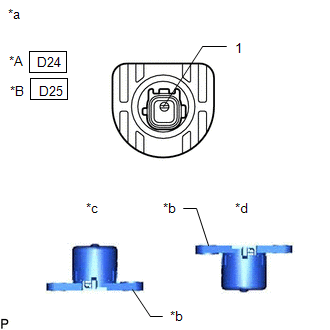

Tester Connection Condition Specified Condition D24-1 - Body ground On Below 1 Ω D24-1 - Body ground Off 10 kΩ or higher *A For 2WD *B For AWD *a Component without harness connected
(Engine Oil Level Sensor)*b Body ground *c ON *d OFF Standard Resistance (for AWD)
Tester Connection Condition Specified Condition D25-1 - Body ground On Below 1 Ω D25-1 - Body ground Off 10 kΩ or higher If the result is not as specified, replace the engine oil level sensor.
- Measure the resistance according to the value(s) in the table below.
