Installation [10/2017 - 10/2020]: Procedure

  1. INSTALL ACCELERATION SENSOR ASSEMBLY
    1. for LH Side:
      1. Connect the connector.

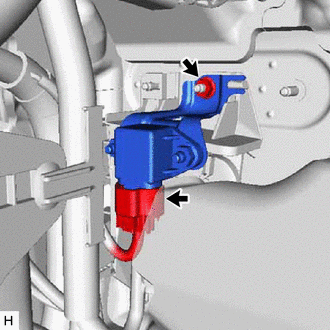

        GTY834120Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Install the acceleration sensor with the nut.

        Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)

        NOTE:
        • Avoid any impact to the acceleration sensor.
        • Do not drop the acceleration sensor. If it is dropped, replace it with a new one.
      3. Return the floor carpet to its original position.
    2. for RH Side:
      1. Connect the connector.

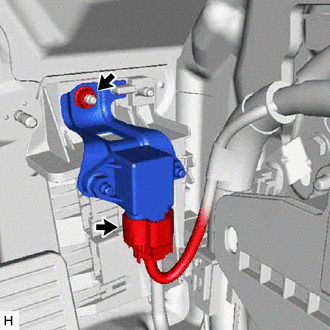

        GTY813524Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Install the acceleration sensor with the nut.

        Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)

        NOTE:
        • Avoid any impact to the acceleration sensor.
        • Do not drop the acceleration sensor. If it is dropped, replace it with a new one.
      3. Return the floor carpet to its original position.
  2. INSTALL COWL SIDE TRIM BOARD LH

    Refer to PROCEDURE - Step 31

  3. INSTALL COWL SIDE TRIM BOARD RH

    Refer to PROCEDURE - Step 35

  4. INSTALL FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 34

  5. INSTALL FRONT DOOR SCUFF PLATE RH

    Refer to PROCEDURE - Step 38

  6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Refer to INSTALLATION [10/2017 - 10/2020]

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [10/2017 - 09/2018] , or refer to INITIALIZATION [09/2018 - 10/2020]
