Components [04/2020 - ]

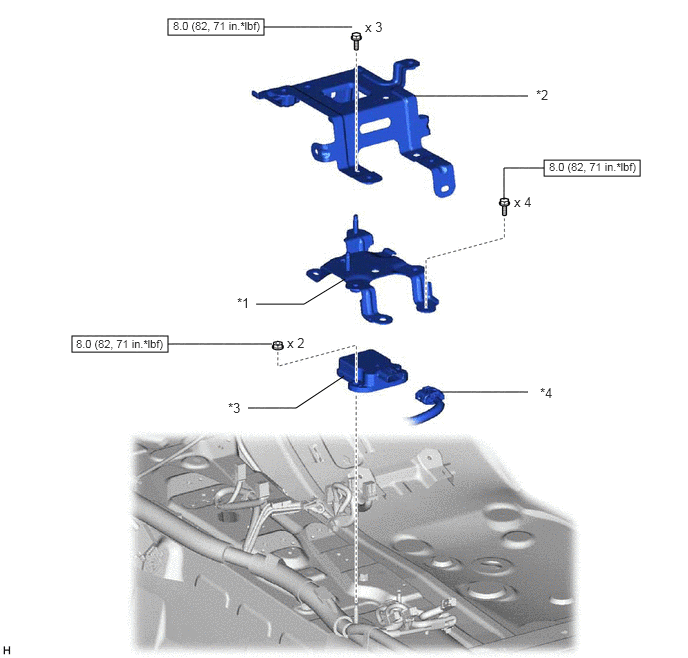

Fig 1: Yaw Rate And Acceleration Sensor Replacement Components With Torque Specifications [04/2020 - ]
GTY958018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 NO. 1 CONSOLE BOX MOUNTING BRACKET *2 NO. 1 CONSOLE BOX SUPPORT
*3 YAWRATE SENSOR *4 CONNECTOR
N.m (kgf/cm, ft.lbf): Specified torque - -
