Removal [01/2017 - ]: Procedure

  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 8 [01/2017 - 06/2019] , or refer to PROCEDURE - Step 8 [06/2019 - 05/2023] , or refer to PROCEDURE - Step 8 [05/2023 - ]

  2. REMOVE VVT SENSOR (for Intake Side of Bank 1)
    1. Disconnect the VVT sensor connector.

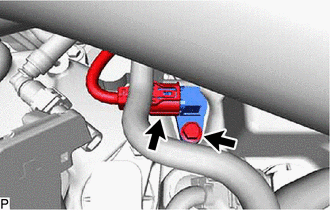

      GTY810588Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and VVT sensor.
      NOTE:

      If the VVT sensor has been struck or dropped, replace it.

    3. Perform this procedure only when reusing the VVT sensor.

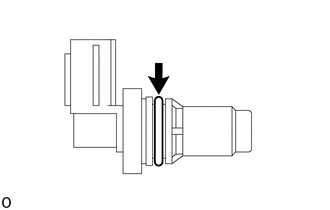

      GTY1132297Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the O-ring from the VVT sensor.
        NOTE:
        • Make sure to only remove the O-ring with bare hands.
        • When removing the O-ring, be careful not to damage the O-ring groove of the VVT sensor.
        • If the O-ring groove of the VVT sensor is damaged, replace the VVT sensor with a new one.
  3. REMOVE VVT SENSOR (for Exhaust Side of Bank 1)
    1. Disconnect the VVT sensor connector.

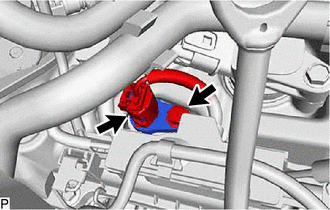

      GTY835037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and VVT sensor.
      NOTE:

      If the VVT sensor has been struck or dropped, replace it.

    3. Perform this procedure only when reusing the VVT sensor.

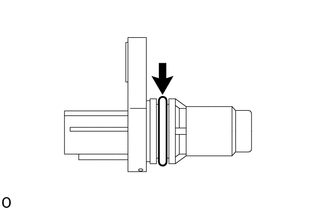

      GTY1132247Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the O-ring from the VVT sensor.
        NOTE:
        • Make sure to only remove the O-ring with bare hands.
        • When removing the O-ring, be careful not to damage the O-ring groove of the VVT sensor.
        • If the O-ring groove of the VVT sensor is damaged, replace the VVT sensor with a new one.
  4. REMOVE VVT SENSOR (for Intake Side of Bank 2)
    1. Disconnect the VVT sensor connector.

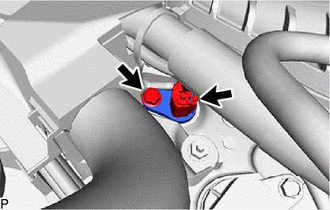

      GTY810589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and VVT sensor.
      NOTE:

      If the VVT sensor has been struck or dropped, replace it.

    3. Perform this procedure only when reusing the VVT sensor.
      GTY1132247Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the O-ring from the VVT sensor.
        NOTE:
        • Make sure to only remove the O-ring with bare hands.
        • When removing the O-ring, be careful not to damage the O-ring groove of the VVT sensor.
        • If the O-ring groove of the VVT sensor is damaged, replace the VVT sensor with a new one.
  5. REMOVE VVT SENSOR (for Exhaust Side of Bank 2)
    1. Disconnect the VVT sensor connector.

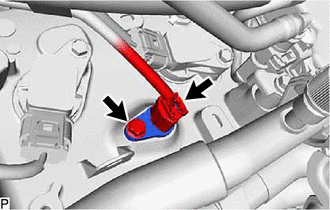

      GTY810586Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and VVT sensor.
      NOTE:

      If the VVT sensor has been struck or dropped, replace it.

    3. Perform this procedure only when reusing the VVT sensor.
      GTY1132247Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the O-ring from the VVT sensor.
        NOTE:
        • Make sure to only remove the O-ring with bare hands.
        • When removing the O-ring, be careful not to damage the O-ring groove of the VVT sensor.
        • If the O-ring groove of the VVT sensor is damaged, replace the VVT sensor with a new one.
