Removal [01/2017 - ]: Procedure

Refer to PROCEDURE - Step 15 [01/2017 - 06/2019] , or refer to PROCEDURE - Step 15 [06/2019 - 05/2023] , or refer to PROCEDURE - Step 15 [05/2023 - ]

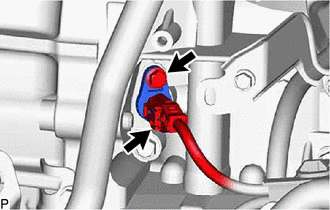

1. Disconnect the crankshaft position sensor connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the bolt and crankshaft position sensor.
   NOTE:

   If the crankshaft position sensor has been struck or dropped, replace it.

3. Perform this procedure only when reusing the crankshaft position sensor.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Remove the O-ring from the crankshaft position sensor.
      NOTE:

      • Make sure to only remove the O-ring with bare hands.
      • When removing the O-ring, be careful not to damage the O-ring groove of the crankshaft position sensor.
      • If the O-ring groove of the crankshaft position sensor is damaged, replace the crankshaft position sensor with a new one.
