Removal [01/2017 - 05/2023]: Procedure

DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [01/2017 - 04/2020] , or refer to INITIALIZATION [04/2020 - 05/2023]
REMOVE RADIATOR SUPPORT TO FRAME SEAL RH
Refer to PROCEDURE - Step 2
REMOVE LOWER RADIATOR AIR DEFLECTOR
Refer to PROCEDURE - Step 3

REMOVE ECM

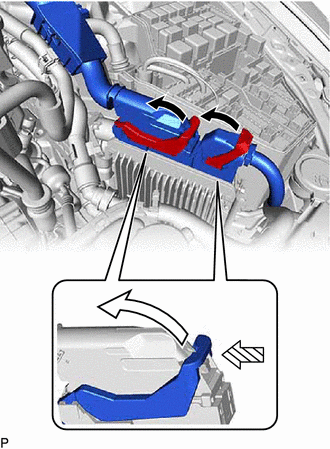

Push in the locks on the 2 levers, raise the 2 levers, and disconnect the 2 ECM connectors.

GTY828461

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Raise
	Push

NOTE:

After disconnecting the connectors, make sure that dirt, water or other foreign matter does not contact the connecting part of the connectors.

Remove the 2 nuts and ECM.

NOTE:

If the ECM has been struck or dropped, replace it.

GTY810604

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE NO. 1 ECM BRACKET

Remove the 2 bolts and No. 1 ECM bracket from the ECM.

GTY810600

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

If the ECM has been struck or dropped, replace it.

REMOVE NO. 2 ECM BRACKET

Remove the 2 bolts and No. 2 ECM bracket from the ECM.

GTY835041

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

If the ECM has been struck or dropped, replace it.
