Mass Air Flow Meter
>>
Components [10/2020 - ]
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Components [10/2020 - ]

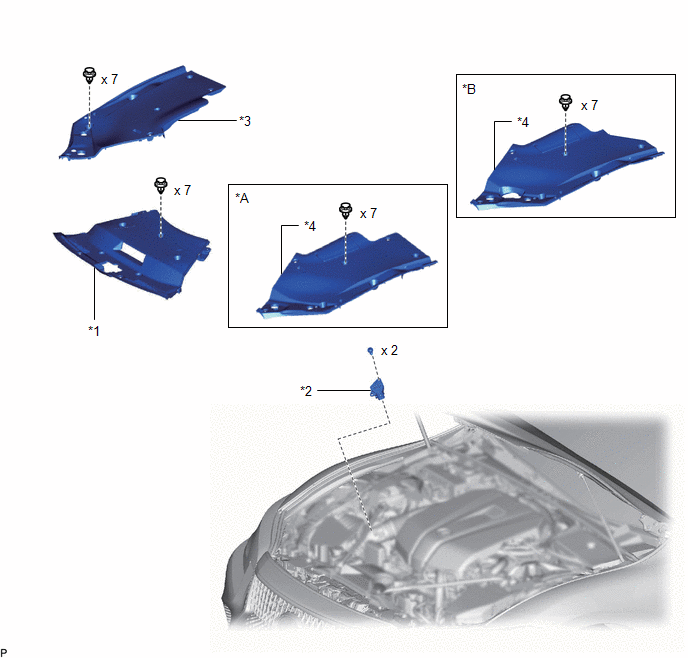

Fig 1: Mass Air Flow Meter Replacement Components [10/2020 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout
Description
Callout
Description
*A
for Type A
*B
for Type B
*1
LOWER RADIATOR AIR DEFLECTOR
*2
MASS AIR FLOW METER SUB-ASSEMBLY
*3
RADIATOR COVER PLATE
*4
UPPER RADIATOR SUPPORT SEAL
