Inspection [10/2014 - ]: Procedure
- INSPECT INTEGRATION CONTROL AND PANEL ASSEMBLY (VSC OFF SWITCH)
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 4 (+) - 1 (GND) Switch not pushed 10 kΩ or higher Switch pushed Below 1 Ω If the result is not as specified, replace the integration control and panel assembly (VSC OFF switch).

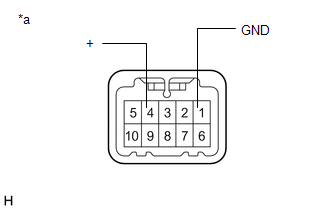

*a Component without harness connected
(Integration Control and Panel Assembly (VSC OFF Switch))
- Measure the resistance according to the value(s) in the table below.
