Components [10/2014 - ]

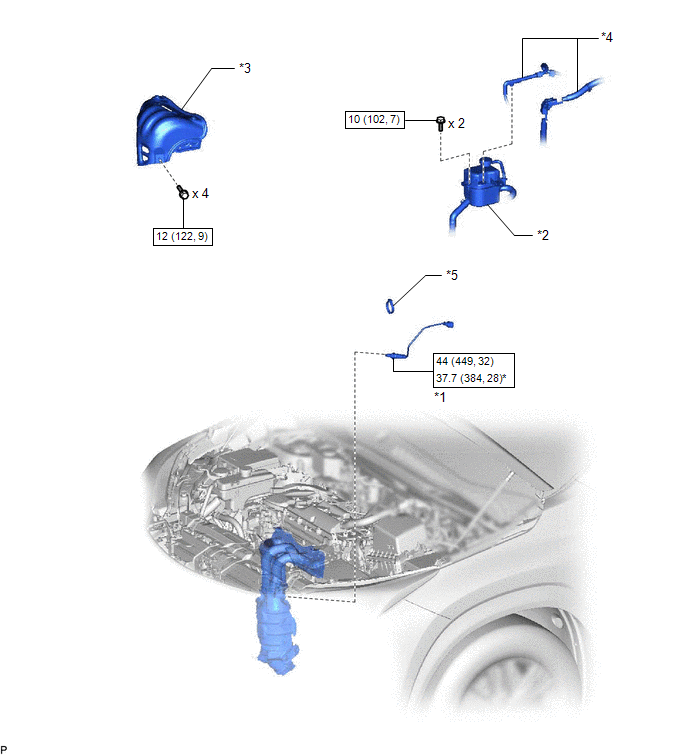

Fig 1: Air Fuel Ratio Sensor Replacement Components With Torque Specifications
GTY503671Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 AIR FUEL RATIO SENSOR *2 INVERTER RESERVE TANK ASSEMBLY
*3 NO. 1 EXHAUST MANIFOLD HEAT INSULATOR *4 WIRE HARNESS
*5 RADIATOR HOSE CLAMP - -
N*m (kgf*cm, ft.*lbf): Specified torque * For use with SST
