Repair [09/2014 - ]: Procedure

  1. REPAIR BACK WINDOW GLASS (REAR WINDOW DEFOGGER WIRE)

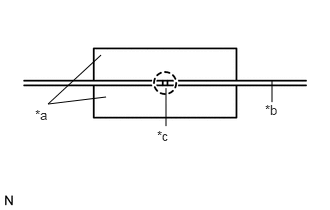

    GTY429562Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Masking Tape
    *b Broken Wire
    *c Repair Point
    1. Clean the broken wire tips with a grease, wax and silicone remover.
    2. Place masking tape along both sides of the wire.
    3. Thoroughly mix the repair agent (Dupont paste No. 4817 or equivalent).

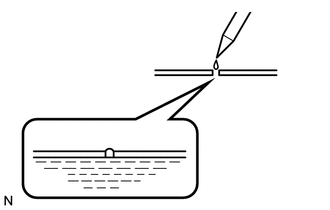

      GTY102931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Using a fine tip brush, apply a small amount of the agent to the wire.
    5. After a few minutes, remove the masking tape.
      NOTE:

      Do not use the rear window defogger for at least 24 hours after performing the repair.
