Components [06/2018 - 09/2022]

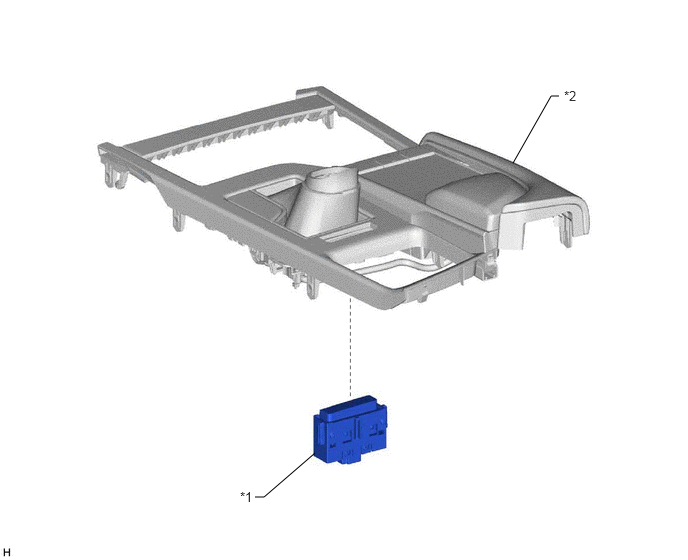

Fig 1: Brake Hold Switch Replacement Components [06/2018 - 09/2022]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
BRAKE HOLD SWITCH (NO. 2 COMBINATION SWITCH ASSEMBLY)
*2
REAR UPPER CONSOLE PANEL SUB-ASSEMBLY
