Removal [08/2020 - ]: Procedure

Refer to PROCEDURE - Step 1

for A25A-FXS: Refer to PROCEDURE - Step 7 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 7 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 7 [09/2022 - ]

for A25A-FKS: Refer to PROCEDURE - Step 8 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 8 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 8 [09/2022 - ]

for 2GR-FKS: Refer to PROCEDURE - Step 7 [10/2019 - 08/2021] , or refer to PROCEDURE - Step 7 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 7 [09/2022 - ]

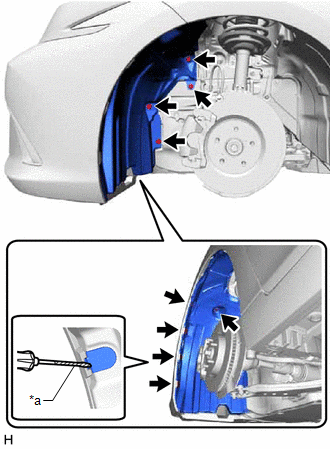

1. Remove the screw and 5 clips.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Protective Tape

2. Using a screwdriver with its tip wrapped with protective tape, disengage the 3 claws to separate the front fender liner.

1. Turn back the front fender liner.

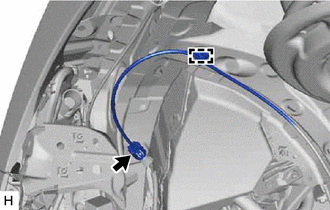

2. Disconnect the front speed sensor connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Disengage the clamp.

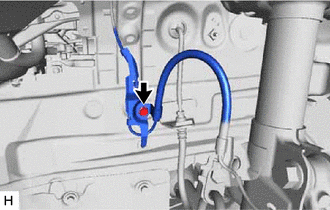

4. Remove the bolt and separate the sensor clamp.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

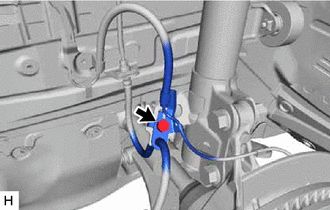

5. Remove the bolt and separate the front flexible hose and sensor clamp.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

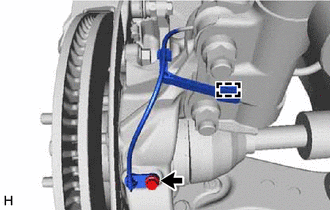

6. Disengage the clamp to separate the sensor clamp.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

7. Remove the bolt and front speed sensor from the steering knuckle.
   NOTE:

   • Keep the tip of the front speed sensor and installation hole free of foreign matter.
   • Do not rotate or apply excessive force to the front speed sensor when removing it from the steering knuckle. Rotating or applying excessive force may result in damage to the front speed sensor.

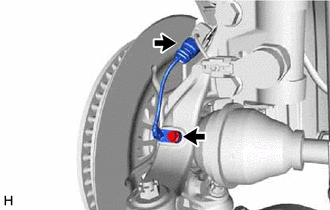

1. Disconnect the front speed sensor connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the bolt and front speed sensor from the steering knuckle.
   NOTE:

   • Keep the tip of the front speed sensor and installation hole free of foreign matter.
   • Do not rotate or apply excessive force to the front speed sensor when removing it from the steering knuckle. Rotating or applying excessive force may result in damage to the front speed sensor.
