Inspection [06/2018 - ]: Procedure
- INSPECT VSC OFF SWITCH
- Make sure that there is no looseness at the locking part and the connecting part of the connector.

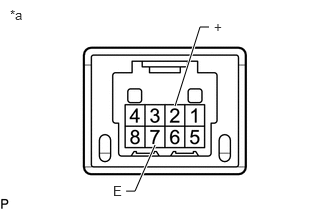

*a Component without harness connected
(VSC OFF Switch)OK
The connector is securely connected.
- Disconnect the VSC OFF switch connector.
- Check both the connector case and the terminal for deformation and corrosion.
OK
No deformation or corrosion.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 2 (+) - 7 (E) Switch pushed Below 1 Ω 2 (+) - 7 (E) Switch not pushed 10 kΩ or higher HINT:
If the result is not as specified, replace the VSC OFF switch.
- Make sure that there is no looseness at the locking part and the connecting part of the connector.
