Components [08/2020 - ]

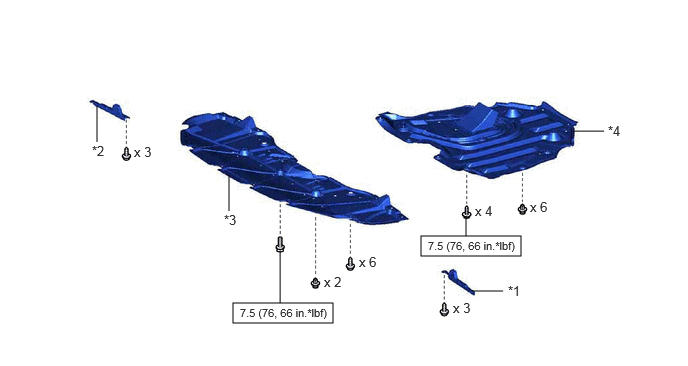

Fig 1: Active Control Engine Mount Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT WHEEL OPENING EXTENSION PAD LH	*2	FRONT WHEEL OPENING EXTENSION PAD RH
*3	NO. 1 ENGINE UNDER COVER	*4	NO. 2 ENGINE UNDER COVER ASSEMBLY
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

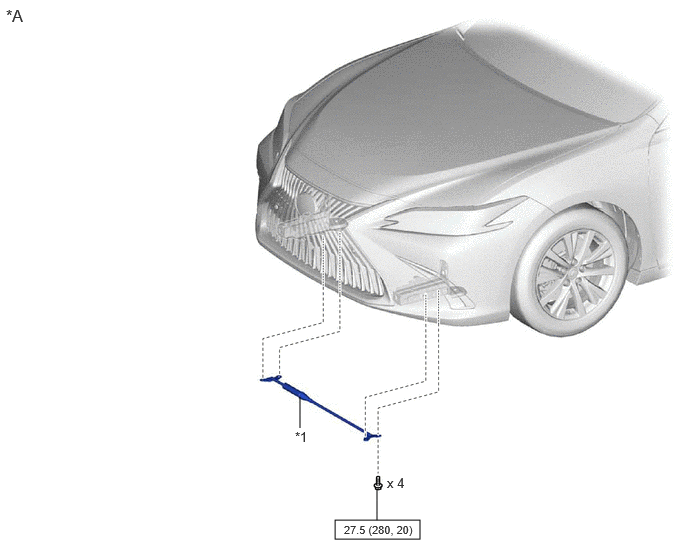

Fig 2: Active Control Engine Mount Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/ Performance Damper	-	-
*1	SUSPENSION TOWER DAMPER	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

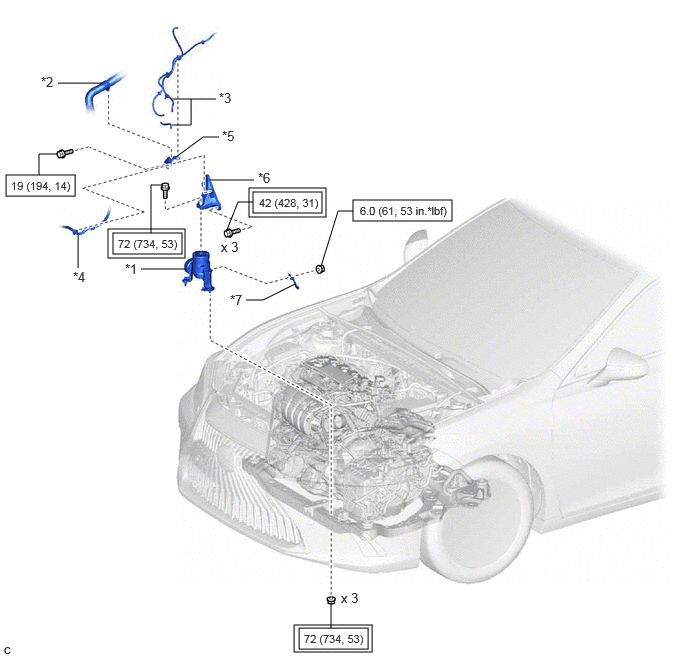

Fig 3: Active Control Engine Mount Replacement Components With Torque Specifications (3 Of 3)

*1	FRONT ENGINE MOUNTING INSULATOR	*2	RADIATOR HOSE
*3	VACUUM HOSE	*4	NO. 2 ENGINE WIRE
*5	NO. 1 RADIATOR BRACKET	*6	FRONT ENGINE MOUNTING BRACKET
*7	STAY	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)		N.m (kgf/cm, ft.lbf): Specified torque
