On-Vehicle Inspection [08/2020 - ]: Procedure

  1. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH

    Refer to PROCEDURE - Step 9 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 9 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 9 [09/2022 - ]

  2. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH

    Refer to PROCEDURE - Step 8 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 8 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 8 [09/2022 - ]

  3. REMOVE NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 10 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 10 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 10 [09/2022 - ]

  4. REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 11 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 11 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 11 [09/2022 - ]

  5. INSPECT FRONT ENGINE MOUNTING INSULATOR
    1. Disconnect the vacuum hose from the front engine mounting insulator.

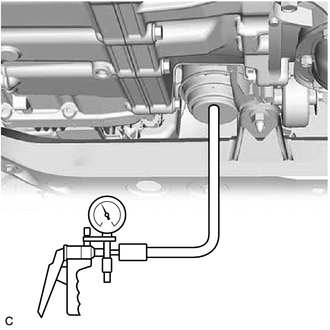

    2. Using a vacuum pump, apply vacuum of 80 kPa (600 mmHg, 23.6 in.Hg) and wait for 1 minute.
      GTY948630Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Check that there is no change in the needle movement of the vacuum pump gauge.

      OK

      Vacuum pressure holds.

    4. Check that there is no fluid leakage caused by a break in the diaphragm.
    5. Connect the vacuum hose to the front engine mounting insulator.
  6. INSTALL NO. 2 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 71 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 72 [08/2021 - ]

  7. INSTALL NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 72 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 73 [08/2021 - ]

  8. INSTALL FRONT WHEEL OPENING EXTENSION PAD LH

    Refer to PROCEDURE - Step 73 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 74 [08/2021 - ]

  9. INSTALL FRONT WHEEL OPENING EXTENSION PAD RH

    Refer to PROCEDURE - Step 74 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 75 [08/2021 - ]
