Removal [08/2020 - ]: Procedure

  1. REMOVE VACUUM SWITCHING VALVE (for Active Control Engine Mount System)

    Refer to REMOVAL [08/2020 - ]

  2. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH

    Refer to PROCEDURE - Step 9 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 9 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 9 [09/2022 - ]

  3. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH

    Refer to PROCEDURE - Step 8 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 8 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 8 [09/2022 - ]

  4. REMOVE NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 10 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 10 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 10 [09/2022 - ]

  5. REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 11 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 11 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 11 [09/2022 - ]

  6. REMOVE SUSPENSION TOWER DAMPER (w/ Performance Damper)

    Refer to PROCEDURE - Step 4

  7. REMOVE FRONT ENGINE MOUNTING INSULATOR

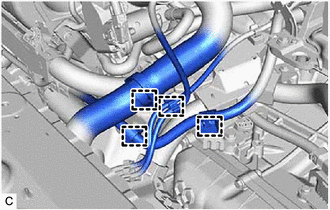

    1. Disengage the 4 clamps to separate the radiator hose, vacuum hoses and No. 2 engine wire from the No. 1 radiator bracket.
      GTY948629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

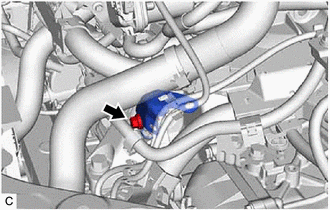

    2. Remove the bolt and No. 1 radiator bracket from the front engine mounting bracket.
      GTY948406Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

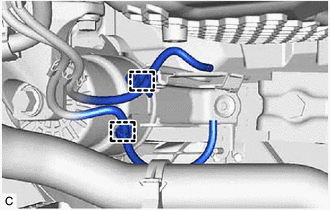

    3. Disengage the 2 clamps to separate the vacuum hoses from the front engine mounting insulator.
      GTY948637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

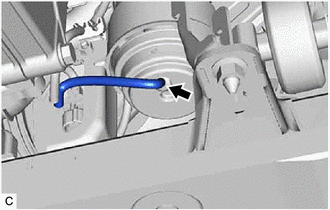

    4. Remove the vacuum hose from the front engine mounting insulator.
      GTY948740Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

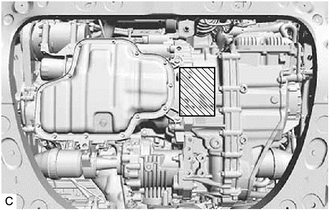

    5. Support the engine assembly with transaxle using a jack and wooden block.
      GTY948724Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Wooden Block Placement Location

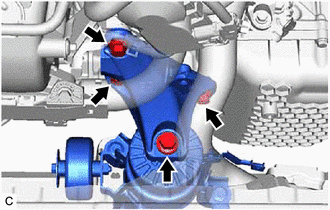

    6. Remove the 4 bolts and front engine mounting bracket.
      GTY948738Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

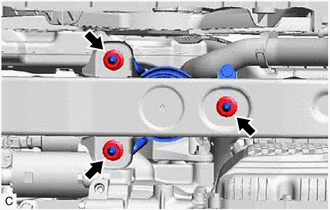

    7. Remove the 3 nuts and front engine mounting insulator from the front frame assembly.
      GTY754280Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

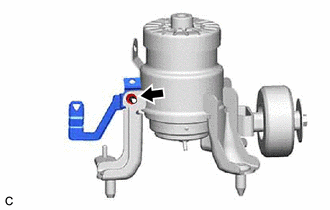

    8. Remove the nut and stay from the front engine mounting insulator.
      GTY948335Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
