Components [08/2020 - ]

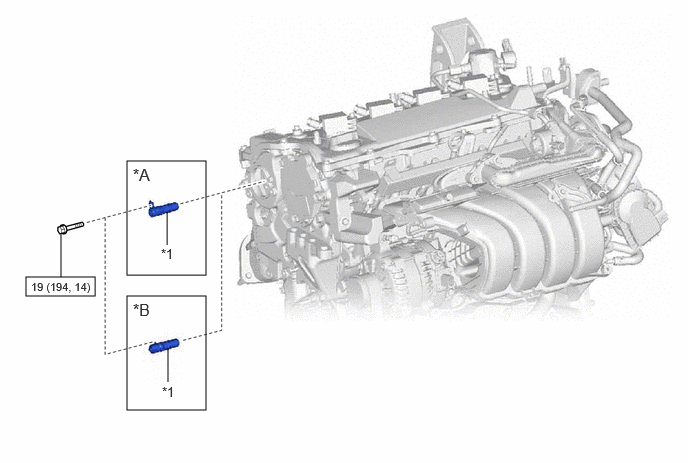

Fig 1: Camshaft Oil Control Valve Replacement Components With Torque Specifications
GTY1205600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A Type A *B Type B
*1 CAMSHAFT TIMING VALVE ASSEMBLY - -
N.m (kgf/cm, ft.lbf): Specified torque - -
