Removal [08/2020 - ]: Procedure
- REMOVE CAM TIMING OIL CONTROL SOLENOID ASSEMBLY
Refer to REMOVAL [08/2020 - ]
- REMOVE CAMSHAFT TIMING VALVE ASSEMBLY
- Using a 5 mm hexagon socket wrench, remove the bolt.

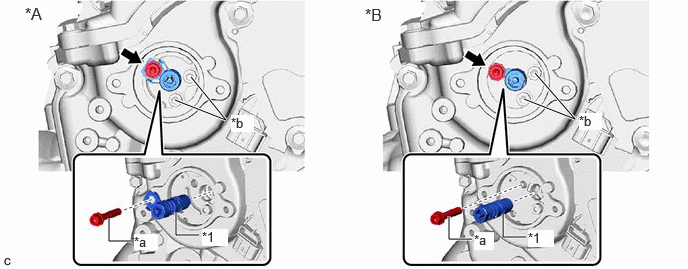

*A Type A *B Type B *1 Camshaft Timing Valve Assembly - - *a Bolt *b Do not remove NOTE:Do not remove the other 2 bolts.
HINT:
If it is difficult to loosen the bolt due to the tools contacting the vehicle body or other parts, rotate the crankshaft to move the bolt to a position where it can be removed easily.
- Remove the camshaft timing valve assembly from the camshaft timing exhaust gear assembly.
- Using a 5 mm hexagon socket wrench, remove the bolt.
