Components [08/2020 - 08/2021]

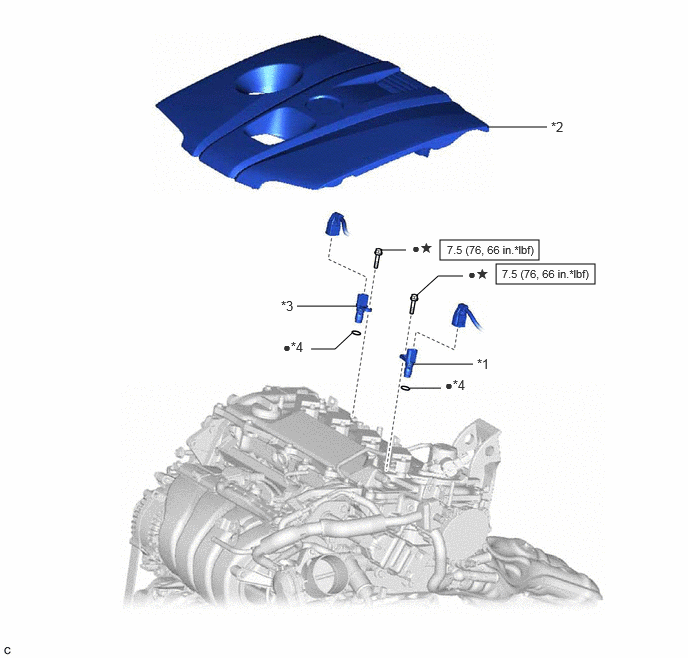

Fig 1: Camshaft Position Sensor Replacement Components With Torque Specifications [08/2020 - 08/2021]
| *1 | CAMSHAFT POSITION SENSOR (for Intake Side) | *2 | NO. 1 ENGINE COVER SUB-ASSEMBLY |
| *3 | CAMSHAFT POSITION SENSOR (for Exhaust Side) | *4 | O-RING |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| * | Precoated part | - | - |
