Components [08/2020 - 08/2021]

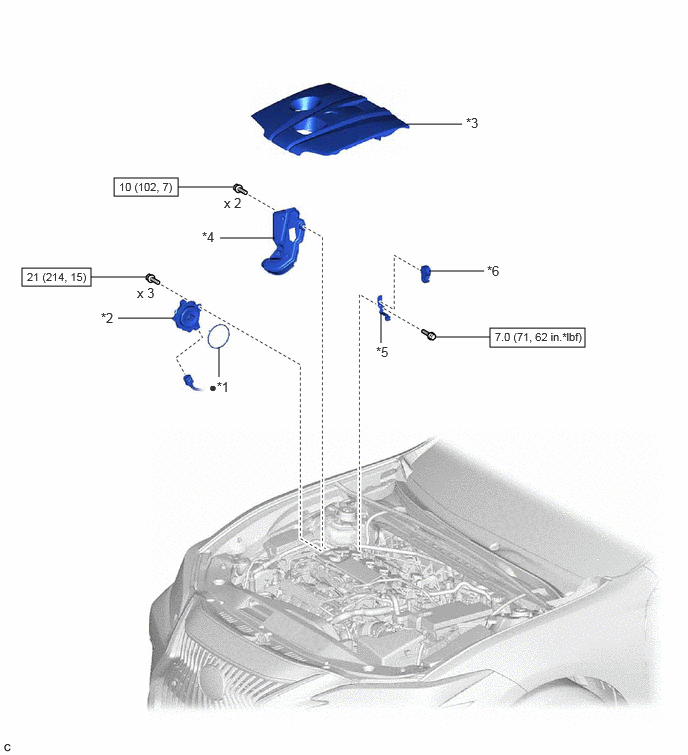

Fig 1: Camshaft Timing Control Motor Replacement Components With Torque Specifications [08/2020 - 08/2021]
| *1 | CAM TIMING CONTROL MOTOR O-RING | *2 | CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY |
| *3 | NO. 1 ENGINE COVER SUB-ASSEMBLY | *4 | NO. 2 ENGINE COVER |
| *5 | NO. 3 BRAKE TUBE CLAMP | *6 | PIPING CLAMP |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
