Components [08/2021 - ]

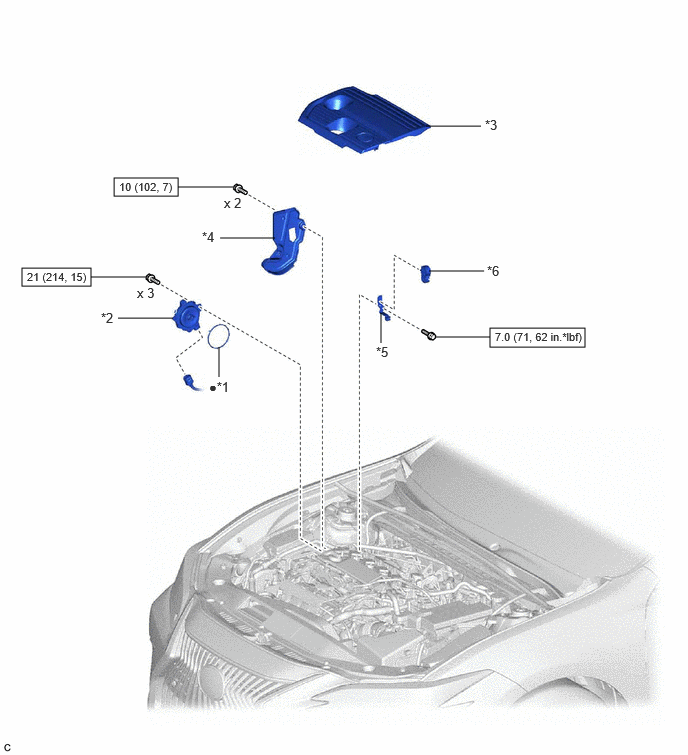

Fig 1: Camshaft Timing Control Motor Replacement Components With Torque Specifications [08/2021 - ]
GTY1084860Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 CAM TIMING CONTROL MOTOR O-RING *2 CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY
*3 NO. 1 ENGINE COVER SUB-ASSEMBLY *4 NO. 2 ENGINE COVER
*5 NO. 3 BRAKE TUBE CLAMP *6 PIPING CLAMP
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
