Components [08/2020 - ]

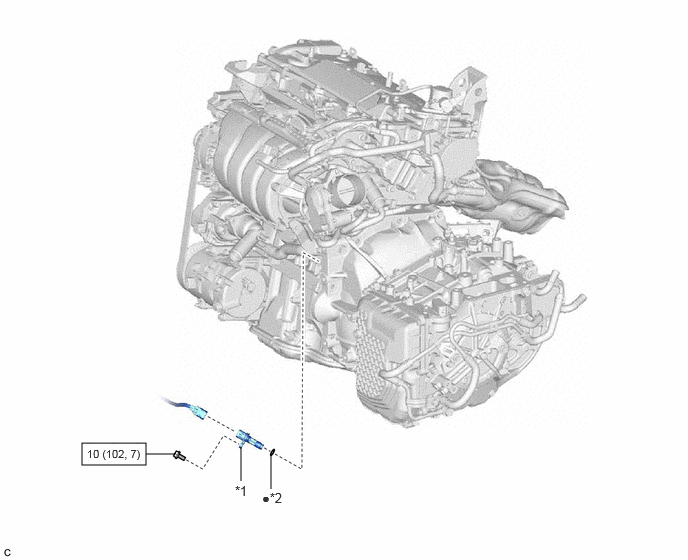

Fig 1: Crankshaft Position Sensor Replacement Components With Torque Specifications
GTY948592Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 CRANKSHAFT POSITION SENSOR *2 O-RING
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
