Installation [08/2020 - ]: Procedure

INSTALL NO. 2 ECM BRACKET
1. Install the No. 2 ECM bracket to the ECM with the 2 screws.
  Torque: 4.5 N.m (46 kgf/cm, 40 in.lbf)
INSTALL NO. 1 ECM BRACKET
1. Install the No. 1 ECM bracket to the ECM with the 2 screws.
  Torque: 4.5 N.m (46 kgf/cm, 40 in.lbf)

INSTALL ECM

Install the ECM with the 2 bolts and nut.
Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

NOTE:
If the ECM has been struck or dropped, replace it.

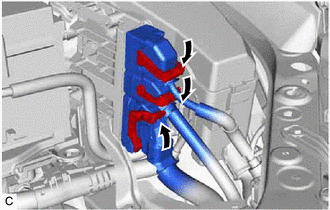

Connect the 3 ECM connectors and rotate the 3 levers to lock them.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

When connecting the ECM connectors, make sure that the connecting parts of the ECM connectors are free of dirt, water and other foreign matter.
Be sure to securely connect the ECM connectors.

INSTALL AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE
Refer to PROCEDURE - Step 46 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 47 [08/2021 - ]
INSTALL INLET AIR CLEANER ASSEMBLY
Refer to PROCEDURE - Step 47 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 48 [08/2021 - ]
INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 48 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 49 [08/2021 - ]
INSTALL COOL AIR INTAKE DUCT SEAL
Refer to PROCEDURE - Step 2 [06/2018 - 08/2021] , or refer to PROCEDURE - Step 2 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 2 [09/2022 - ]
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Refer to PROCEDURE - Step 2
PERFORM INITIALIZATION
Refer to INITIALIZATION [08/2020 - 08/2021] , or refer to INITIALIZATION [08/2021 - 09/2022] , or refer to INITIALIZATION [09/2022 - ]
