Removal [09/2022 - ]: Procedure

  1. REMOVE GENERATOR ASSEMBLY

    Refer to REMOVAL [09/2022 - ]

  2. REMOVE KNOCK CONTROL SENSOR

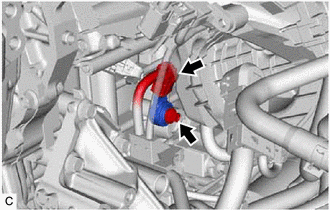

    1. Disconnect the knock control sensor connector.
      GTY754296Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and knock control sensor from the cylinder block sub-assembly.
      NOTE:

      If the knock control sensor has been struck or dropped, replace it.
