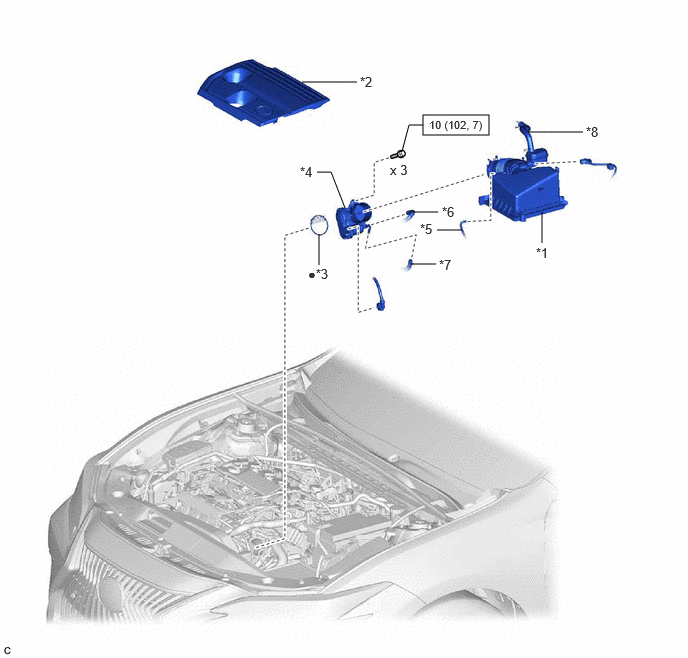

Components [08/2021 - ]
| *1 | AIR CLEANER CAP WITH AIR CLEANER HOSE | *2 | NO. 1 ENGINE COVER SUB-ASSEMBLY |
| *3 | THROTTLE BODY GASKET | *4 | THROTTLE BODY WITH MOTOR ASSEMBLY |
| *5 | VACUUM HOSE | *6 | NO. 6 WATER BY-PASS HOSE |
| *7 | NO. 5 WATER BY-PASS HOSE | *8 | NO. 2 VENTILATION HOSE |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
