Components [08/2020 - ]

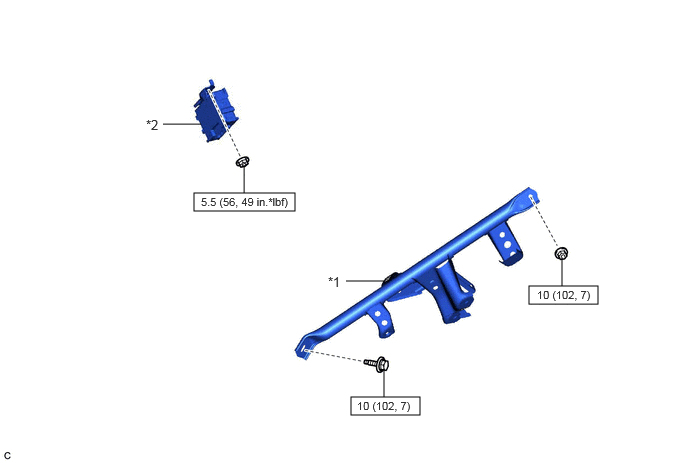

Fig 1: 4WD Control ECU Replacement Components With Torque Specifications
GTY957938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 NO. 3 INSTRUMENT PANEL TO COWL BRACE SUB-ASSEMBLY *2 4WD ECU ASSEMBLY
N.m (kgf/cm, ft.lbf): Specified torque - -
