Disassembly [08/2020 - ]: Procedure

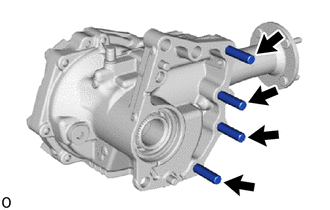

- REMOVE TRANSFER AND TRANSAXLE SETTING STUD BOLT

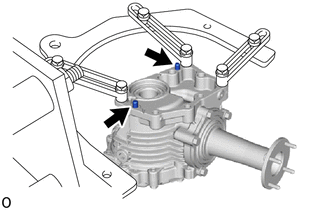

- SECURE TRANSFER ASSEMBLY
- Secure the transfer assembly to the overhaul attachment.

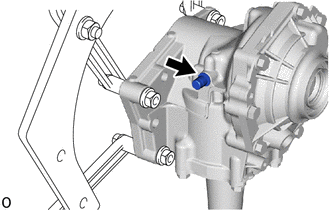

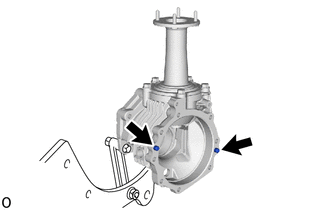

- REMOVE TRANSFER CASE STRAIGHT PIN
- Remove the 2 transfer case straight pins.
- REMOVE NO. 1 TRANSFER CASE PLUG
- Remove the No. 1 transfer case plug and gasket.
- REMOVE TRANSFER DRAIN PLUG
- Using a 10 mm socket hexagon wrench, remove the transfer drain plug and gasket.
- REMOVE TRANSFER FILLER PLUG
- Using a 10 mm socket hexagon wrench, remove the transfer filler plug and gasket.
- REMOVE TRANSFER CASE BREATHER PLUG
- Using a chisel and hammer, slightly pry out the transfer case breather plug.
- Using a screwdriver, lightly pry up and remove the transfer case breather plug.
- REMOVE TRANSFER CASE OIL SEAL
See step 4 [08/2020 - 08/2021], or see step 4 [08/2021 - 09/2022], or see step 4 [09/2022 - ]
- REMOVE TRANSFER CASE OIL SEAL RH

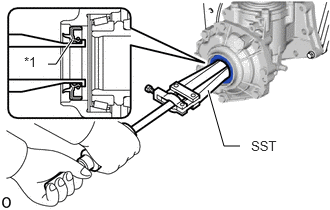

*1 Transfer Case Oil Seal RH - Using SST, remove the transfer case oil seal RH from the No. 1 transfer case cover.
- SST: 09308-00010
NOTE:Do not scratch the press-fitting surface of the transfer case oil seal RH.
- Using SST, remove the transfer case oil seal RH from the No. 1 transfer case cover.
- INSPECT TOTAL PRELOAD
*1 Double Nut *a Torque Wrench Fulcrum Length - Install the double nut to the transfer output shaft stud bolt and set the torque wrench into place.
HINT:
Adjust the double nut until the torque wrench is straight.
- Using a torque wrench, check the total preload (starting torque) with the teeth of the drive pinion and ring gear in contact.
Total preload (starting torque)
Torque: 0.87 N.m (2.85 N.m (8.88 kgf/cm, 29.06 kgf/cm, 7.71 in.lbf) 25.22 in.lbf)
HINT:
- When using a torque wrench after changing its effective length, determine the reading of the torque wrench.FORMULA T'=T X L2/(L1+L2)
T' Reading of torque wrench (N.m (kgf/cm, ft.lbf)) T Driven pinion preload (N.m (kgf/cm, ft.lbf)) L1 Distance from center of transfer output shaft to center of stud bolt (cm (in.)) L2 Length of torque wrench (cm (in.)) - Distance from center of transfer output shaft to center of stud bolt (effective length of 38.9 mm (1.531 in.)) when using a torque wrench (effective length of 160 mm (6.30 in.)): 0.70 to 2.29 N.m (8 to 23 kgf/cm, 7 to 20 in.lbf)
- When using a torque wrench after changing its effective length, determine the reading of the torque wrench.
- Install the double nut to the transfer output shaft stud bolt and set the torque wrench into place.
- INSPECT RING GEAR BACKLASH
- Insert a dial indicator through the No. 2 transfer case plug hole, and set it perpendicular to the edge of a ring gear tooth.
If the backlash is not within the specified range, adjust the backlash or repair as necessary.
- While securing the transfer output shaft by hand, rotate the transfer ring gear mounting case forward and backward by hand and measure the backlash of the ring gear and driven pinion.
Standard Backlash
0.10 to 0.20 mm (0.00394 to 0.00787 in.)
NOTE:Measure the ring gear at 3 or more locations.
- Insert a dial indicator through the No. 2 transfer case plug hole, and set it perpendicular to the edge of a ring gear tooth.
- REMOVE NO. 1 TRANSFER CASE COVER
- Remove the 8 bolts.

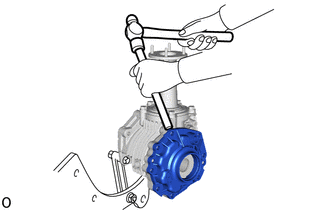

- Using a brass bar and hammer, remove the No. 1 transfer case cover from the transfer case.NOTE:
- Put the brass bar against the rib of the No. 1 transfer case cover.
- When removing the No. 1 transfer case cover, be careful not to scratch the installation surface.
HINT:
To prevent the No. 1 transfer case cover from falling, leave 2 of the bolts screwed in by 5 or 6 threads.
- Remove the 8 bolts.
- REMOVE TRANSFER RING GEAR
- REMOVE TRANSFER CASE STRAIGHT PIN
- INSPECT DRIVEN PINION PRELOAD
- Install the double nut to the transfer output shaft stud bolt and set the torque wrench into place.
*1 Double Nut *a Torque Wrench Fulcrum Length HINT:
Adjust the double nut until the torque wrench is straight.
- Using a torque wrench, check the total preload (starting torque) with the teeth of the drive pinion and ring gear in contact.
Driven pinion preload (starting torque)
Torque: 0.39 N.m (2.21 N.m (3.98 kgf/cm, 22.53 kgf/cm, 3.46 in.lbf) 19.55 in.lbf)
HINT:
- When using a torque wrench after changing its effective length, determine the reading of the torque wrench.FORMULA T'=T X L2/(L1+L2)
T' Reading of torque wrench (N.m (kgf/cm, ft.lbf)) T Driven pinion preload (N.m (kgf/cm, ft.lbf)) L1 Distance from center of transfer output shaft to center of stud bolt (cm (in.)) L2 Length of torque wrench (cm (in.)) - Distance from center of transfer output shaft to center of stud bolt (effective length of 38.9 mm (1.531 in.)) when using a torque wrench (effective length of 160 mm (6.30 in.)):0.32 to 1.77 N.m (4 to 18 kgf/cm, 3 to 15 in.lbf)
- When using a torque wrench after changing its effective length, determine the reading of the torque wrench.
- Install the double nut to the transfer output shaft stud bolt and set the torque wrench into place.
- REMOVE REAR TRANSFER OUTPUT SHAFT SUB-ASSEMBLY
- Remove the 5 bolts and rear transfer output shaft sub-assembly from the transfer case.
- Mount the rear transfer output shaft sub-assembly in a vise between aluminum plates.NOTE:
Do not overtighten the vise.

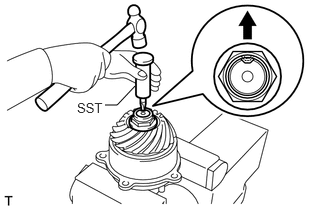

- Using SST and a hammer, unstake the transfer gear nut.
- SST: 09930-00010
NOTE:- Be sure to use SST with the tapered surface facing the shaft.
- Do not grind the tip of SST with a grinder or other device.
- Completely loosen the staked part of the transfer gear nut when removing it.
- Do not damage the threads of the output shaft sub-assembly.
- Using a 30 mm socket wrench, remove the transfer gear nut.
- Remove the 5 bolts and rear transfer output shaft sub-assembly from the transfer case.
- REMOVE TRANSFER DRIVEN PINION
- Using SST and a press, remove the transfer driven pinion from the rear transfer output shaft sub-assembly.
- SST: 09950-00020
- SST: 09950-60011
- 09951-00240
- SST: 09950-70010
- 09951-07100

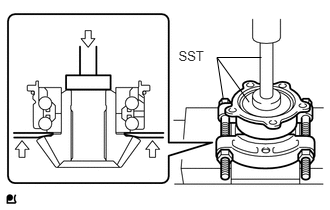

NOTE:Support the front transfer driven pinion bearing as shown in the illustration to avoid placing stress on the outer race.
- Using SST and a press, remove the transfer driven pinion from the rear transfer output shaft sub-assembly.
- REMOVE REAR TRANSFER OUTPUT SHAFT DUST DEFLECTOR
- REMOVE FRONT TRANSFER DRIVEN PINION BEARING
- Using SST and a press, remove the front transfer driven pinion bearing from the transfer driven pinion.
- SST: 09950-00020
- SST: 09950-60011
- 09951-00410
- SST: 09950-70010
- 09951-07100
NOTE:Support the front transfer driven pinion bearing as shown in the illustration to avoid placing stress on the outer race.

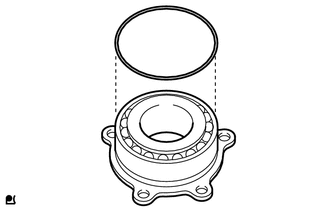

Remove the O-ring from the front transfer driven pinion bearing.
- Using SST and a press, remove the front transfer driven pinion bearing from the transfer driven pinion.
- REMOVE TRANSFER OUTPUT SHAFT WASHER
- Remove the transfer output shaft washer from the transfer driven pinion.
- REMOVE RING GEAR MOUNTING CASE BEARING RH

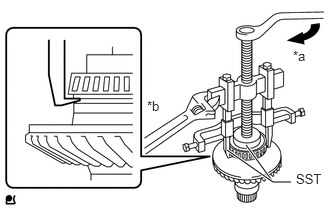

*a Turn *b Hold - Using SST, remove the ring gear mounting case bearing RH (inner race) from the transfer ring gear mounting case.
- SST: 09950-40011
- 09951-04010
- 09952-04010
- 09953-04030
- 09954-04010
- 09955-04061
- 09957-04010
- 09958-04011
- SST: 09950-60011
- 09951-00540
NOTE:- Apply a lubricant to the threads and end of SST.
- Do not deform the cage of the ring gear mounting case bearing RH (inner race) (when reusing the bearing).
- Place identification marks on the left and right ring gear mounting case bearings to distinguish them (backside, teeth side). Then store them separately (when reusing the bearings).
- SST: 09950-40011

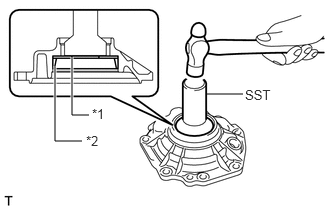

- Using SST and a hammer, remove the No. 2 transfer ring gear mounting case washer and ring gear mounting case bearing RH (outer race) from the No. 1 transfer case cover.
*1 No. 2 Transfer Ring Gear Mounting Case Washer *2 Ring Gear Mounting Case Bearing RH (Outer Race) - SST: 09310-35010
- Using SST, remove the ring gear mounting case bearing RH (inner race) from the transfer ring gear mounting case.
- REMOVE RING GEAR MOUNTING CASE BEARING LH

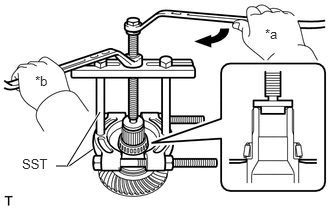

*a Turn *b Hold - Using SST, remove the ring gear mounting case bearing LH (inner race) from the transfer ring gear mounting case.
- SST: 09950-00020
- SST: 09950-00030
NOTE:- Apply a lubricant to the threads and end of SST.
- Do not deform the cage of the ring gear mounting case bearing LH (inner race) (when reusing the bearing).
- Place identification marks on the left and right ring gear mounting case bearings to distinguish them (backside, teeth side). Then store them separately (when reusing the bearings).

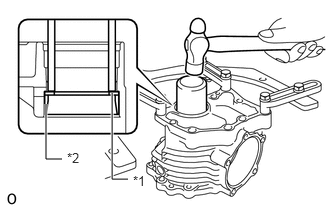

- Using SST and a hammer, remove the No. 1 ring gear mounting case washer and ring gear mounting case bearing LH (outer race) from the transfer case.
- SST: 09636-20010
*1 No. 1 Ring Gear Mounting Case Washer *2 Ring Gear Mounting Case Bearing LH (Outer Race)
- Using SST, remove the ring gear mounting case bearing LH (inner race) from the transfer ring gear mounting case.
- REMOVE SHAFT SNAP RING
- Using a snap ring expander, remove the shaft snap ring.
- REMOVE TRANSFER RING GEAR MOUNTING CASE

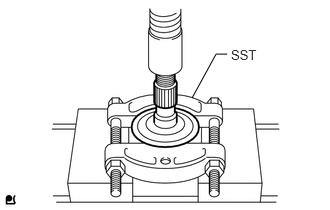

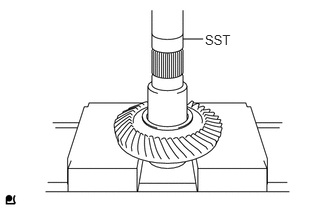

- Using SST and a press, remove the transfer ring gear mounting case from the transfer ring gear.
- SST: 09950-60011
- 09951-00400
- SST: 09950-60011
- Using SST and a press, remove the transfer ring gear mounting case from the transfer ring gear.
- REMOVE BREATHER OIL DEFLECTOR
- Remove the 2 bolts and breather oil deflector from the transfer case.
